BBBC050 segmentation validation#

Quality superiority was not demonstrated. SplineOps projection was fast and competitive in this labeled 3-D microscopy application, but it did not meet the frozen success criterion against every baseline.

Why this is stronger evidence#

BBBC050 version 2 contains time-series 3-D fluorescence images and manually annotated mouse-embryo nuclei. The official archive provides 121 annotated volumes from 11 training embryos and 44 from four test embryos acquired with a different microscope and fluorophore. Images and ground truth are CC BY 3.0.

The study reduces Y and X by approximately two while preserving Z. A scalar threshold then produces a semantic nuclei mask. Thresholds are fitted without using the evaluated embryo:

  • the primary result is leave-one-embryo-out validation over 11 embryos;

  • frames are averaged within embryo instead of treated as independent samples;

  • four acquisition-shifted embryos provide external directional validation;

  • the 11 training t251 volumes inspected during development are excluded from all primary fitting and evaluation.

The frozen protocol required SplineOps to beat every alternative by at least 0.005 Dice, have a paired 95% embryo-bootstrap lower bound above zero, and not reverse direction externally. Archive checksums, the pilot exclusion, metric, threshold range, bootstrap seed, and failure rule were fixed locally before the full run. This was not independently preregistered.

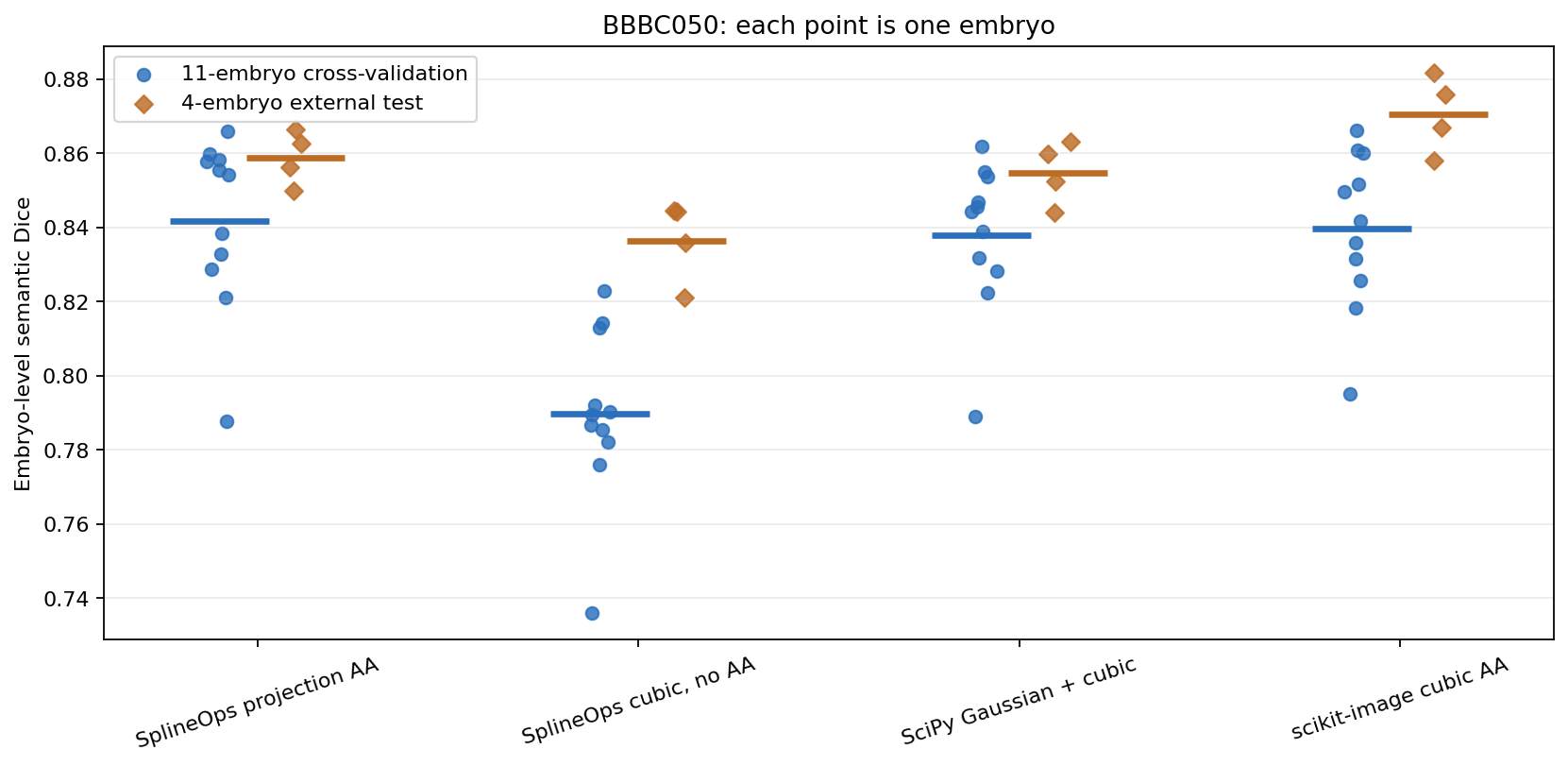

Cross-validation and external semantic Dice with one point per embryo

Result#

Recorded BBBC050 result#

Method

11-embryo CV Dice

4-embryo external Dice

Median resize time

SplineOps projection AA

0.8419

0.8588

4.16 ms

SplineOps cubic, no AA

0.7898

0.8365

2.84 ms

SciPy Gaussian + cubic

0.8380

0.8548

124.38 ms

scikit-image cubic AA

0.8397

0.8707

110.76 ms

Projection antialiasing beat SplineOps interpolation without antialiasing by 0.0520 Dice in cross-validation, with a 95% interval of [0.0456, 0.0595]. That comparison passed all criteria.

Against SciPy, the cross-validation difference was +0.00387 with interval [0.00089, 0.00707] and the external difference was +0.00400. The direction was consistent, but the gain missed the predeclared 0.005 practical margin.

Against scikit-image, the cross-validation difference was +0.00219 with an interval crossing zero, [-0.00207, 0.00643]. On the external embryos, scikit-image was better by 0.01185 Dice. Therefore the overall superiority claim failed.

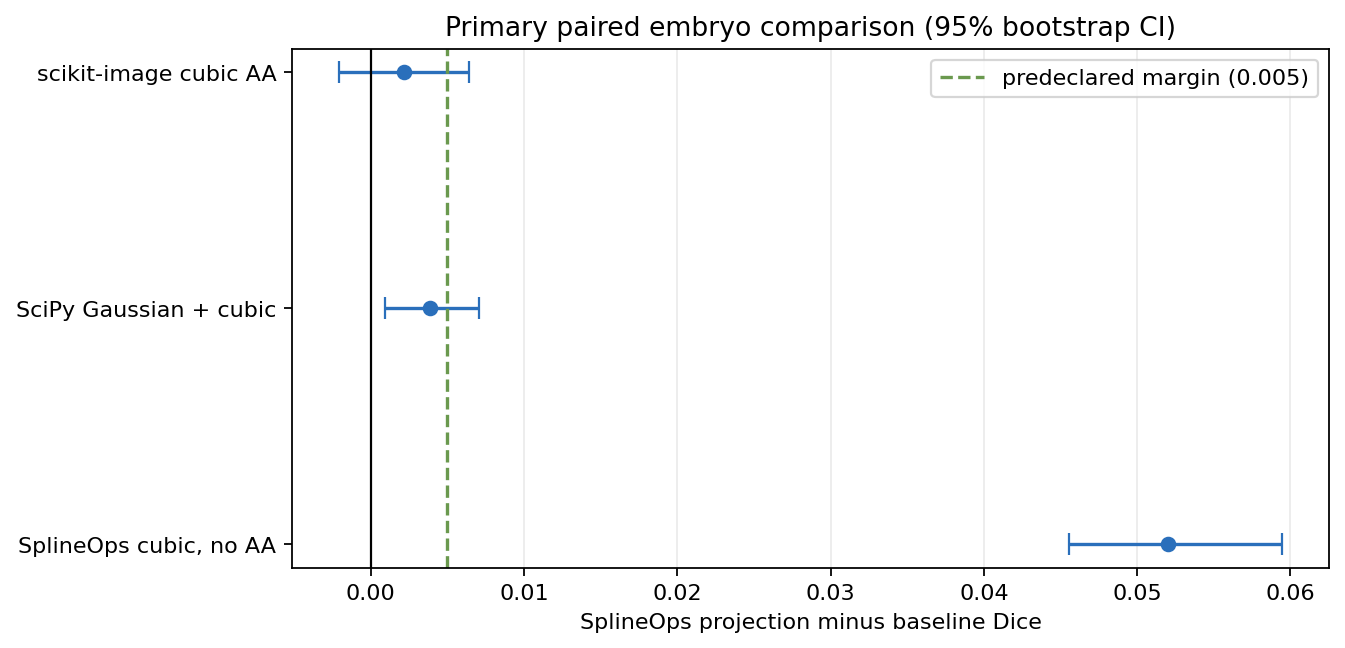

Paired Dice differences with confidence intervals and practical margin

The local runtime result is favorable but narrower: SplineOps projection was about 30 times faster than the SciPy pipeline and 27 times faster than scikit-image on these small volumes and this workstation. The grids are not identical—scikit-image was evaluated with its corresponding nearest-neighbour ground-truth grid—so this is a practical pipeline comparison, not kernel parity.

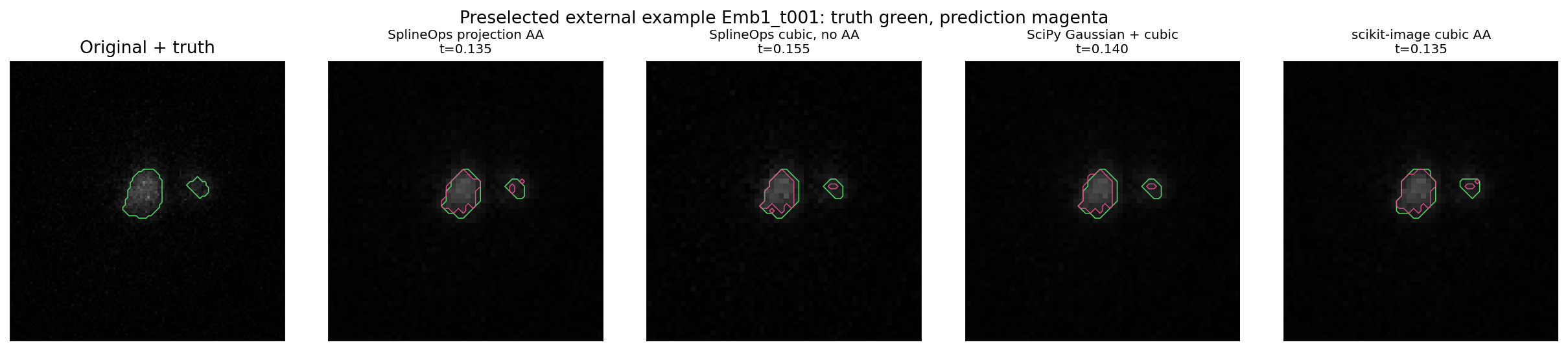

Preselected external volume with truth and threshold predictions

What can be claimed#

This study supports two statements:

  • projection antialiasing materially improves this application over cubic interpolation without antialiasing;

  • SplineOps offers competitive semantic-segmentation quality with low local resize time in this exact workflow.

It does not support “SplineOps has better segmentation quality than SciPy and scikit-image.” It also tests a transparent threshold segmenter, not a trained 3-D neural network or instance segmentation. A model-based claim needs a separately frozen study with identical training budgets and multiple seeds.

Reproduce it#

The two public archives are downloaded to the user cache and verified; they are not stored in the repository.

python -m pip install -e '.[study]'
python scripts/benchmark_bbbc050_segmentation.py \
    --output-dir benchmarks/bbbc050

The benchmark script, raw JSON, and flat CSV files publish full-precision per-embryo and per-volume results. Runtime remains machine-specific.
