Regress Module

We use the regress module to perform linear regression on a set of 1D points.

You can download this example at the tab at right (Python script or Jupyter notebook.

Imports

Import the necessary libraries and modules.

import numpy as np
from matplotlib import pyplot as plt

from splineops.regress.denoising import denoise_y
from splineops.regress.sparsification import sparsest_interpolant, linear_spline

Data Preparation

Create a dataset as (x,y) coordinates.

# Directly embedded data
data = np.array([
    [0.0107766212868331, 0.260227935166001],
    [0.0310564395737153, 0.124128829346261],
    [0.0568406178471921, -0.0319625924377939],
    [0.0624834663023982, -0.305487158118621],
    [0.0855836735802228, 0.0198584921896104],
    [0.111715185429166, 0.132374842819488],
    [0.139391914966393, 0.0346881909310438],
    [0.151220604385114, 0.225044726396834],
    [0.160372945787459, -0.0839333693634482],
    [0.196012653453612, 0.100524891786437],
    [0.20465948547682, 0.286553206119747],
    [0.236142103912376, -0.0969023194982265],
    [0.247757212881283, 0.344416030734225],
    [0.277270837091189, 0.322338105021903],
    [0.294942432854744, 0.628493233708394],
    [0.311124804679808, 0.238685146788896],
    [0.322729104513214, 0.0314182350548619],
    [0.341198353790244, 0.554001442697049],
    [0.362426869114815, 0.658491185386012],
    [0.380891037570895, 0.622866466731061],
    [0.402149882582122, 0.832680133314763],
    [0.424514186772157, 0.282871329344068],
    [0.454259779607654, 0.418961645149398],
    [0.471194339641083, 0.765569673816136],
    [0.480251119603182, 0.936269519087734],
    [0.50143948559379, 1.21690697362292],
    [0.539345526600005, 0.856785149480669],
    [0.551362009238399, 0.918563536364133],
    [0.56406586469322, 1.04369945227154],
    [0.585046514891406, 0.891659244596406],
    [0.614876517081502, 1.01020862285029],
    [0.623908589622186, 1.05646068606692],
    [0.651627178545465, 1.13455056187785],
    [0.679400399781766, 1.56682321923577],
    [0.696936576029801, 1.47238622944877],
    [0.704796955182952, 1.20492985044235],
    [0.729875394285375, 1.45329058102288],
    [0.752399114367628, 1.26394538858847],
    [0.776579617991004, 1.4052754431186],
    [0.783135827892922, 1.2534612824523],
    [0.800371524043548, 1.58782975330571],
    [0.821400442874384, 1.3740621261335],
    [0.849726902218741, 2.27247168443063],
    [0.872126589233067, 1.98304748773148],
    [0.89137702874173, 1.59274379691406],
    [0.906347248186443, 1.82991582958117],
    [0.939772323088249, 1.9344157693364],
    [0.951594904384916, 1.71570985938051],
    [0.967602823452471, 2.32573940626424],
    [0.991018964382358, 2.11540602201059]
])

x, y = data[:, 0], data[:, 1]

Denoising

The function denoise_y applies a regularized least-squares method to smooth the noisy data.

# Regularization parameter
lamb = 1e-2

# Compute denoised y
y_denoised = denoise_y(x, y, lamb, rho=lamb)

Sparsest Linear Regression

The sparsest_interpolant function computes the sparsest set of knots that fit the denoised data.

# Compute sparsest linear spline that connects denoised data points
knots, amplitudes, polynomial = sparsest_interpolant(x, y_denoised)

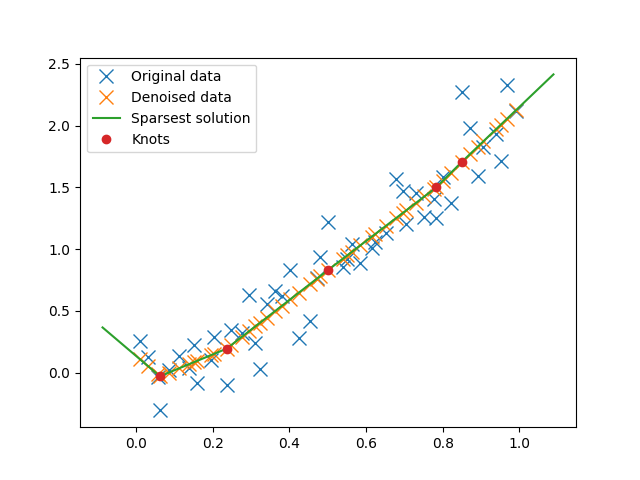

Visualization

The original, denoised, and sparsest spline solutions are plotted for comparison.

# Plot result
margin = (x[-1]-x[0]) / 10
t_grid = np.concatenate(([x[0]-margin], knots, [x[-1]+margin]))
fig = plt.figure()
ax = plt.gca()
ax.plot(x, y, 'x', label='Original data', markersize=10)
if lamb > 0:
    ax.plot(x, y_denoised, 'x', label='Denoised data', markersize=10)
ax.plot(t_grid, linear_spline(t_grid, knots, amplitudes, polynomial), label='Sparsest solution')
if len(knots) > 0:
    ax.plot(knots, linear_spline(knots, knots, amplitudes, polynomial), 'o', label='Knots')
ax.legend()
plt.show()
