Interpolate 1D Samples

Interpolate 1D samples with standard interpolation.

1. Assume that a user-provided 1D list of samples \(f[k]\) has been obtained by sampling a spline on a unit grid.

2. From the samples, recover the continuously defined spline \(f(x)\).

Imports

import numpy as np
import matplotlib.pyplot as plt
from splineops.spline_interpolation.tensor_spline import TensorSpline
from splineops.spline_interpolation.bases.utils import create_basis


plt.rcParams.update(
    {
        "font.size": 14,  # Base font size
        "axes.titlesize": 18,  # Title font size
        "axes.labelsize": 16,  # Label font size
        "xtick.labelsize": 14,
        "ytick.labelsize": 14,
    }
)

Helper for Basis Decomposition

Reusable function to visualize a weighted sum of shifted spline bases for different spline families (e.g., cubic, linear).

The grid is constructed with a rational step 1 / samples_per_unit so that all integer positions k are exactly included, i.e. we always sample each basis function at its center x = k.

def plot_basis_decomposition(
    f_support,
    samples,
    coeffs,
    basis_name: str,
    title: str,
    samples_per_unit: int = 32,
    x_margin: float = 2.0,
):
    """
    Plot the original samples f[k] together with the shifted basis functions
    scaled by the true spline coefficients c[k].

    Parameters
    ----------
    f_support : array-like
        Integer sample positions k.
    samples : array-like
        Original samples f[k], shown as stems on the integer grid.
    coeffs : array-like
        Spline coefficients c[k] used to scale the shifted basis functions.
    basis_name : str
        Name of the spline basis (e.g., "bspline3", "bspline1").
    title : str
        Matplotlib figure title.
    samples_per_unit : int, optional
        Number of evaluation points per unit interval for the dense grid.
    x_margin : float, optional
        Extra domain added on both sides of the sample support.
    """
    basis = create_basis(basis_name)
    f_support_length = len(f_support)

    # Domain slightly beyond the data support: [0, K-1] expanded by x_margin
    x_min = -x_margin
    x_max = (f_support_length - 1) + x_margin

    # Dense grid with rational step so that all integers are hit exactly
    dx = 1.0 / samples_per_unit
    x_dense = np.arange(x_min, x_max + 0.5 * dx, dx, dtype=np.float64)

    plt.figure(figsize=(10, 4))
    plt.title(title)
    plt.stem(f_support, samples, basefmt=" ", label="f[k] samples")
    plt.axhline(y=0, color="black", linewidth=1, zorder=0)

    # Plot each shifted basis function scaled by c[k]: c[k] · β(x − k)
    for k, c_k in enumerate(coeffs):
        y_basis = c_k * basis.eval(x_dense - k)
        plt.plot(x_dense, y_basis, linewidth=2, alpha=0.7)

    plt.xlabel("x")
    plt.ylabel("Amplitude")
    plt.grid(True)
    plt.tight_layout()
    plt.show()

Initial 1D Samples

We generate 1D samples and treat them as discrete signal points.

Let \(\mathbf{f} = (f[0], f[1], f[2], \dots, f[K-1])\) be a 1D array of data.

These are the input samples that we are going to interpolate.

number_of_samples = 27

f_support = np.arange(number_of_samples, dtype=np.float64)
f_support_length = len(f_support)  # It's equal to number_of_samples

f_samples = np.array(
    [
        -0.657391,
        -0.641319,
        -0.613081,
        -0.518523,
        -0.453829,
        -0.385138,
        -0.270688,
        -0.179849,
        -0.11805,
        -0.0243016,
        0.0130667,
        0.0355389,
        0.0901577,
        0.219599,
        0.374669,
        0.384896,
        0.301386,
        0.128646,
        -0.00811776,
        0.0153119,
        0.106126,
        0.21688,
        0.347629,
        0.419532,
        0.50695,
        0.544767,
        0.555373,
    ],
    dtype=np.float64,
)

plt.figure(figsize=(10, 4))
plt.title("f[k] samples")
plt.stem(f_support, f_samples, basefmt=" ")
# Add a black horizontal line at y=0:
plt.axhline(
    y=0,
    color="black",
    linewidth=1,
    zorder=0,
)
plt.xlabel("k")
plt.ylabel("f[k]")
plt.grid(True)
plt.tight_layout()
plt.show()

Cubic Spline Decomposition

Visualize the shifted cubic B-spline basis functions β(x - k) that serve as the building blocks of the interpolant. Here we use the true spline coefficients c[k] computed internally by TensorSpline.

# Build a TensorSpline to obtain the true cubic coefficients c[k]
cubic_spline = TensorSpline(
    data=f_samples, coordinates=f_support, bases="bspline3", modes="mirror"
)
cubic_coeffs = cubic_spline.coefficients

plot_basis_decomposition(
    f_support=f_support,
    samples=f_samples,
    coeffs=cubic_coeffs,
    basis_name="bspline3",
    title="f[k] samples with shifted cubic spline basis functions",
    samples_per_unit=32,
    x_margin=2.0,
)

Cubic Spline Interpolation

We interpolate the 1D samples with a spline to obtain the continuously defined function

\[f(x) = \sum_{k\in{\mathbb{Z}}}\,c[k]\,\beta^{n}(x-k),\]

where

• the B-spline of degree \(n\) is \(\beta^n\);

• the spline coefficients \(c[k]\) are determined from the input samples, such that \(f(k) = f[k]\).

Let us now plot \(f\).

# Plot points
plot_points_per_unit = 12

# Interpolated signal
base = "bspline3"
mode = "mirror"

TensorSpline

Here is one way to perform the standard interpolation.

f = TensorSpline(data=f_samples, coordinates=f_support, bases=base, modes=mode)

f_coords = np.array(
    [q / plot_points_per_unit for q in range(plot_points_per_unit * f_support_length)]
)

# Syntax hint: pass (plot_coords,) not plot_coords
f_data = f(coordinates=(f_coords,), grid=False)

Resize Method

The resize method with standard interpolation yields the same result.

from splineops.resize import resize

# We'll produce the same number of output samples as in f_coords
desired_length = plot_points_per_unit * f_support_length

# IMPORTANT: We explicitly define a coordinate array from 0..(f_support_length - 1)
# with `desired_length` points. This matches the domain and size that the `resize`
# function will produce below, ensuring the two outputs are sampled at the exact
# same x-positions, and thus comparable point-by-point.
f_coords_resize = np.linspace(0, f_support_length - 1, desired_length, dtype=np.float64)

f_data_resize = resize(
    data=f_samples,  # 1D input
    output_size=(desired_length,),
    method="cubic",  # ensures TensorSpline standard interpolation, not least-squares or oblique
)

# Ensure both arrays have identical shapes
f_data_spline = f(coordinates=(f_coords_resize,), grid=False)
assert f_data_spline.shape == f_data_resize.shape, "Arrays must match in shape."
mse_diff = np.mean((f_data_spline - f_data_resize) ** 2)
print(f"MSE between TensorSpline result and resize result = {mse_diff:.6e}")

MSE between TensorSpline result and resize result = 3.560300e-34

Plot of the Spline f

plt.figure(figsize=(10, 4))
plt.title("f[k] samples with interpolated f spline")
plt.stem(f_support, f_samples, basefmt=" ", label="f[k] samples")
# Add a black horizontal line at y=0:
plt.axhline(
    y=0,
    color="black",
    linewidth=1,
    zorder=0,  # draw behind other plot elements
)
plt.plot(f_coords_resize, f_data_resize, color="green", linewidth=2, label="f spline")
plt.xlabel("k")
plt.ylabel("f")
plt.legend()
plt.grid(True)
plt.tight_layout()
plt.show()

Linear Spline Decomposition

Repeat the same visualization, now using the linear B-spline basis instead of the cubic one, and the corresponding linear spline coefficients c[k].

linear_spline = TensorSpline(
    data=f_samples, coordinates=f_support, bases="bspline1", modes="mirror"
)
linear_coeffs = linear_spline.coefficients

plot_basis_decomposition(
    f_support=f_support,
    samples=f_samples,
    coeffs=linear_coeffs,
    basis_name="bspline1",

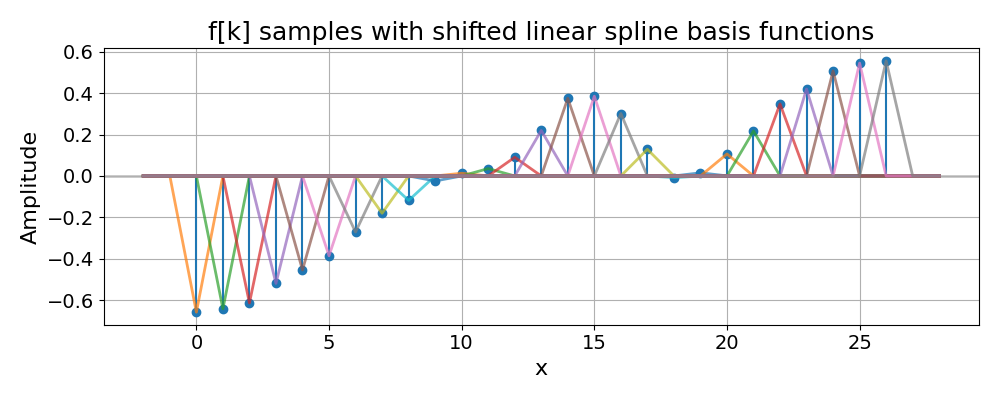

    title="f[k] samples with shifted linear spline basis functions",
    samples_per_unit=32,
    x_margin=2.0,
)

Linear Spline Interpolation

We now build the interpolant using the linear B-spline basis instead of the cubic one, and plot it together with the samples.

base_lin = "bspline1"
mode_lin = "mirror"

f_lin = TensorSpline(
    data=f_samples, coordinates=f_support, bases=base_lin, modes=mode_lin
)

# Reuse the same dense coordinate grid as for the cubic case so that
# the two interpolants can be visually compared if desired.
f_data_lin = f_lin(coordinates=(f_coords_resize,), grid=False)

plt.figure(figsize=(10, 4))

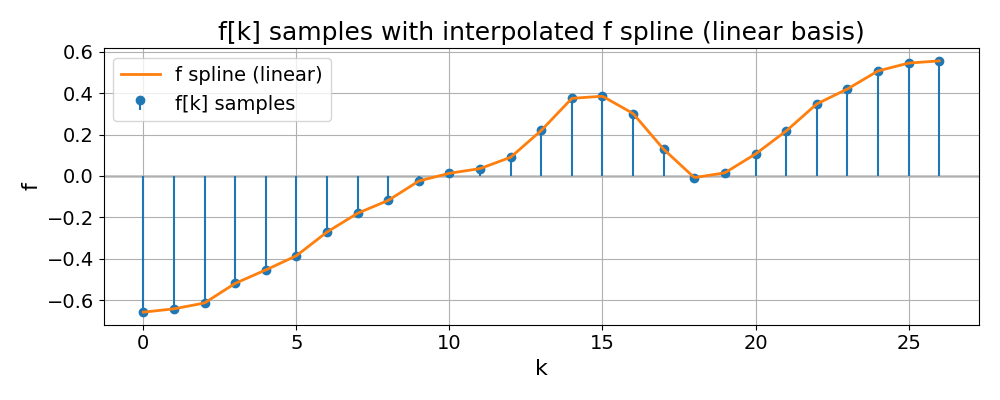

plt.title("f[k] samples with interpolated f spline (linear basis)")
plt.stem(f_support, f_samples, basefmt=" ", label="f[k] samples")
plt.axhline(
    y=0,
    color="black",
    linewidth=1,
    zorder=0,
)
plt.plot(f_coords_resize, f_data_lin, linewidth=2, label="f spline (linear)")
plt.xlabel("k")
plt.ylabel("f")
plt.legend()
plt.grid(True)
plt.tight_layout()
plt.show()
