How Bad Aliasing Can Be

We construct an A/B corner mix image where, in each 2×2 tile, the top-left pixel comes from image A and the other three come from B. We then:

1. Look at the A/B mix at full resolution.

2. Downsample by 0.5 with standard cubic interpolation (no explicit anti-aliasing) and observe a surprising result: the mix collapses to something very close to A.

3. Downsample by 0.5 with an antialiased cubic projection and see how proper low-pass filtering preserves the expected 25%/75% mixture in the ROI.

This illustrates why anti-aliasing is essential for faithful downsampling.

Imports

import numpy as np
import matplotlib.pyplot as plt
from urllib.request import urlopen
from PIL import Image

from splineops.resize import resize
from splineops.utils.plotting import show_roi_zoom


# Use float32 for storage / IO (resize still computes internally in float64).
DTYPE = np.float32

Load and Prepare Base ROI

Load A and B, convert to grayscale, and define the ROI on the originals.

URL_A = "https://r0k.us/graphics/kodak/kodak/kodim14.png"
URL_B = "https://r0k.us/graphics/kodak/kodak/kodim08.png"

ROI_SIZE_PX = 64               # original ROI side (pixels)
FACE_ROW, FACE_COL = 250, 445  # ROI center (approx) in ORIGINAL coordinates

ZOOM = (0.5, 0.5)              # 0.5× downsampling demo

def to_gray01(img_rgb_uint8: np.ndarray) -> np.ndarray:
    g = img_rgb_uint8.astype(np.float64) / 255.0
    gray = 0.2989 * g[..., 0] + 0.5870 * g[..., 1] + 0.1140 * g[..., 2]
    return gray.astype(DTYPE)

with urlopen(URL_A, timeout=10) as resp:
    A = to_gray01(np.array(Image.open(resp)))
with urlopen(URL_B, timeout=10) as resp:
    B = to_gray01(np.array(Image.open(resp)))
assert A.shape == B.shape, "Images A and B must have identical shape."

h_img, w_img = A.shape  # ORIGINAL canvas size (e.g., 512×768)

# Original ROI (face) — top-left corner (for show_roi_zoom)
row_top = int(np.clip(FACE_ROW - ROI_SIZE_PX // 2, 0, h_img - ROI_SIZE_PX))
col_left = int(np.clip(FACE_COL - ROI_SIZE_PX // 2, 0, w_img - ROI_SIZE_PX))

# Keep the ROI center as *relative* position for later (downsampled views)
rel_center_r = FACE_ROW / h_img
rel_center_c = FACE_COL / w_img

roi_kwargs_orig = dict(
    roi_height_frac=ROI_SIZE_PX / h_img,  # keeps height at 64 px (square ROI)
    grayscale=True,
    roi_xy=(row_top, col_left),           # top-left of the ROI
)

Base Image

Construct the synthetic “corner mix” where A occupies the top-left pixel of every 2×2 block, and B fills the other three pixels.

mixed = B.copy()
mixed[0::2, 0::2] = A[0::2, 0::2]

_ = show_roi_zoom(
    mixed,

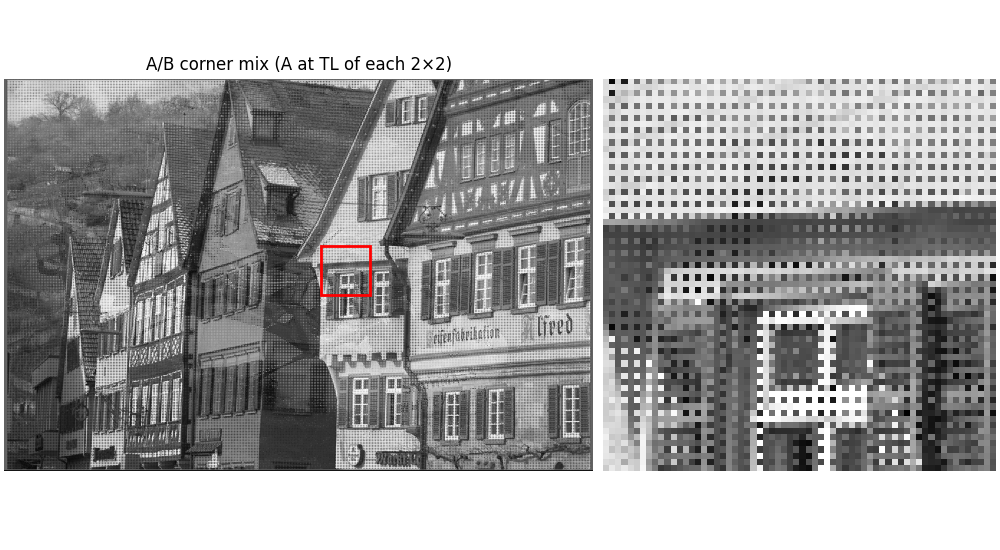

    ax_titles=("A/B corner mix (A at TL of each 2×2)", None),
    **roi_kwargs_orig,
)

Downsampling (No Antialiasing)

We first apply a 0.5× downsampling using standard cubic interpolation. To make the behaviour easier to see, we crop the input so that its height and width are odd: this ensures the 0.5× sampling grid lands exactly on the top-left pixel of each 2×2 tile.

H, W = mixed.shape
if (H % 2 == 0) or (W % 2 == 0):
    mixed_odd = mixed[: H - (H % 2 == 0), : W - (W % 2 == 0)]
else:
    mixed_odd = mixed

h_odd, w_odd = mixed_odd.shape
assert (h_odd % 2 == 1) and (w_odd % 2 == 1), "Expect odd H×W after the crop."

res_std = resize(
    mixed_odd,
    zoom_factors=ZOOM,
    method="cubic",  # standard (no explicit anti-aliasing)
)

def show_resized_on_original_canvas_same_relpos(resized: np.ndarray, title: str):
    h_res, w_res = resized.shape

    # EXACT half-size ROI on the resized image
    roi_h_res = ROI_SIZE_PX // 2  # 64 → 32
    roi_w_res = ROI_SIZE_PX // 2

    # SAME RELATIVE CENTER as in originals
    center_r_res = int(round(rel_center_r * h_res))
    center_c_res = int(round(rel_center_c * w_res))

    # ROI top-left in RESIZED coords, clipped
    row_top_res = int(np.clip(center_r_res - roi_h_res // 2, 0, h_res - roi_h_res))
    col_left_res = int(np.clip(center_c_res - roi_w_res // 2, 0, w_res - roi_w_res))

    # Build ORIGINAL-size white canvas and paste resized at (0,0)
    canvas = np.ones((h_img, w_img), dtype=resized.dtype)
    canvas[:h_res, :w_res] = resized

    # Use ORIGINAL canvas height so 32 px is respected visually (no forced shrinking)
    roi_kwargs_canvas = dict(
        roi_height_frac=(ROI_SIZE_PX // 2) / h_img,   # 32 / original height
        grayscale=True,
        roi_xy=(row_top_res, col_left_res),           # ROI within the pasted resized patch
    )

    return show_roi_zoom(canvas, ax_titles=(title, None), **roi_kwargs_canvas)

_ = show_resized_on_original_canvas_same_relpos(

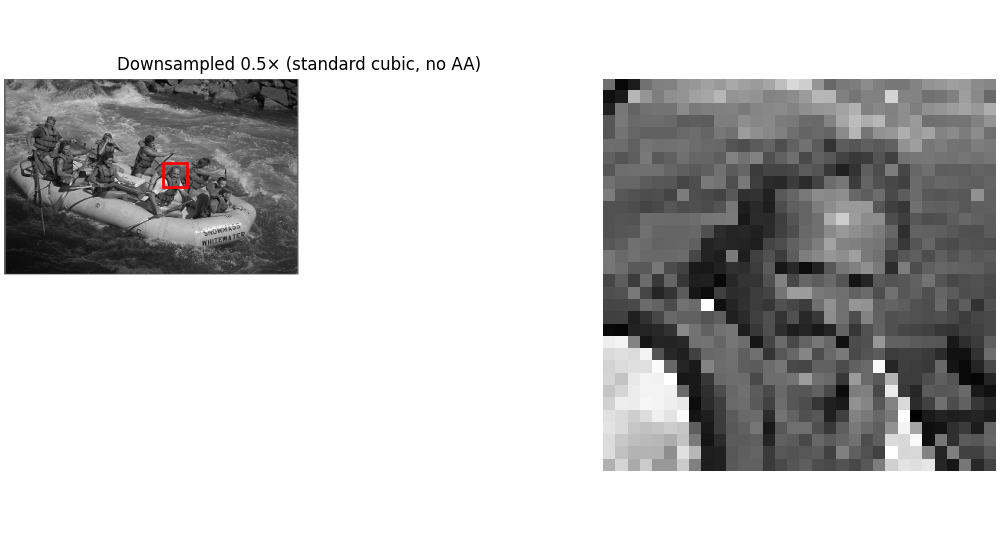

    res_std, "Downsampled 0.5× (standard cubic, no AA)"
)

Downsampling (Antialiasing)

Now we apply downsampling with antialiasing, which performs a projection that includes a matched low-pass filter before decimation.

res_aa = resize(
    mixed_odd,
    zoom_factors=ZOOM,
    method="cubic-antialiasing",  # antialiased (oblique projection) cubic
)

_ = show_resized_on_original_canvas_same_relpos(

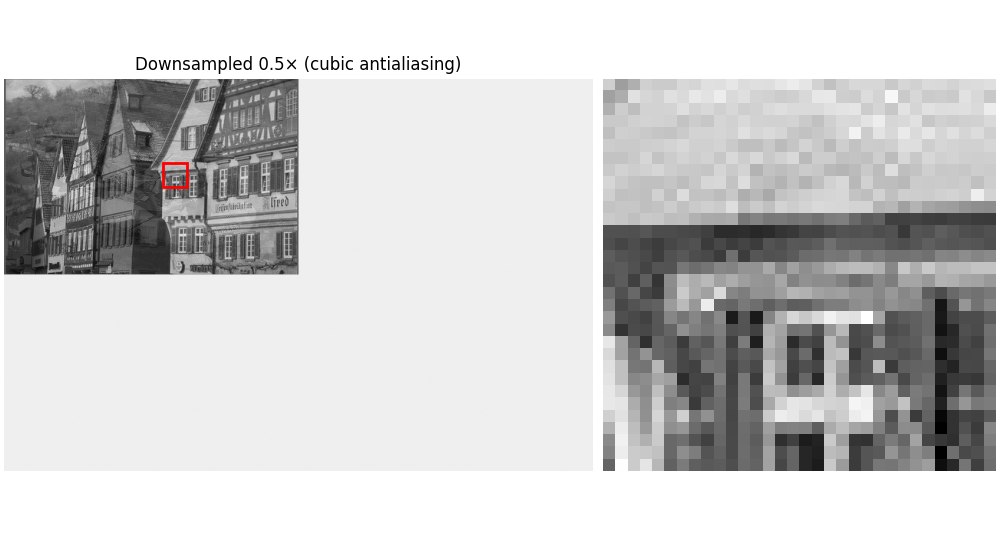

    res_aa, "Downsampled 0.5× (cubic antialiasing)"
)

ROI Comparison

To make the difference as clear as possible, we extract the same 32×32 ROI around the same physical location from both downsampled images and display their nearest-neighbour magnifications side by side.

roi_side_res = ROI_SIZE_PX // 2  # 64 → 32 in the downsampled images

# ROI in standard cubic result
h_std, w_std = res_std.shape
center_r_std = int(round(rel_center_r * h_std))
center_c_std = int(round(rel_center_c * w_std))
row_top_std = int(np.clip(center_r_std - roi_side_res // 2, 0, h_std - roi_side_res))
col_left_std = int(np.clip(center_c_std - roi_side_res // 2, 0, w_std - roi_side_res))
roi_std = res_std[row_top_std : row_top_std + roi_side_res,
                  col_left_std : col_left_std + roi_side_res]

# ROI in antialiased result (same physical location)
h_aa, w_aa = res_aa.shape
center_r_aa = int(round(rel_center_r * h_aa))
center_c_aa = int(round(rel_center_c * w_aa))
row_top_aa = int(np.clip(center_r_aa - roi_side_res // 2, 0, h_aa - roi_side_res))
col_left_aa = int(np.clip(center_c_aa - roi_side_res // 2, 0, w_aa - roi_side_res))
roi_aa = res_aa[row_top_aa : row_top_aa + roi_side_res,
                col_left_aa : col_left_aa + roi_side_res]

def _nearest_big(roi: np.ndarray, target_h: int = 256) -> np.ndarray:
    h, w = roi.shape
    mag = max(1, int(round(target_h / h)))
    return np.repeat(np.repeat(roi, mag, axis=0), mag, axis=1)

roi_big_std = _nearest_big(roi_std, 256)
roi_big_aa  = _nearest_big(roi_aa, 256)

fig, axes = plt.subplots(1, 2, figsize=(10, 4))
for ax, im, title in zip(
    axes,
    [roi_big_std, roi_big_aa],

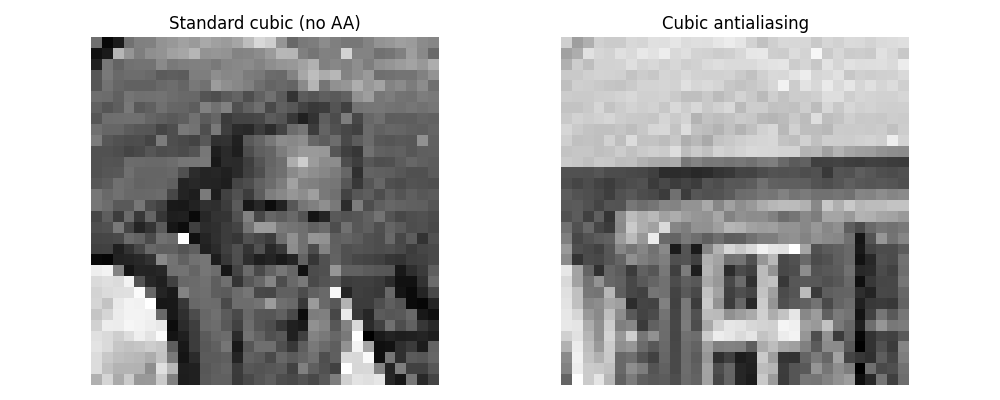

    ["Standard cubic (no AA)", "Cubic antialiasing"],
):
    ax.imshow(im, cmap="gray", interpolation="nearest")
    ax.set_title(title)
    ax.axis("off")
    ax.set_aspect("equal")

fig.tight_layout()
plt.show()

Source Images and ROI

To understand the behaviour, it is helpful to inspect the two source images separately on the original grid, using the same ROI.

Image A

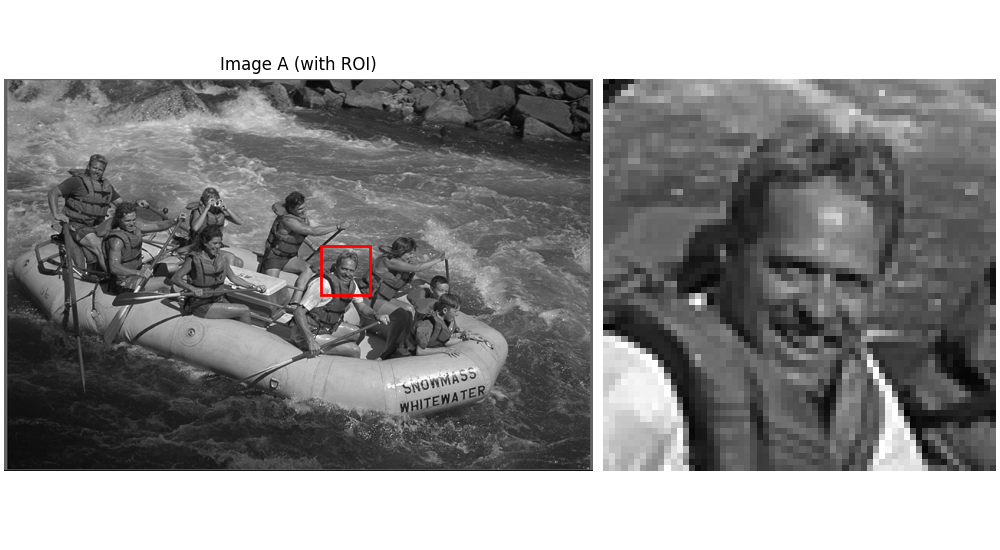

_ = show_roi_zoom(A, ax_titles=("Image A (with ROI)", None), **roi_kwargs_orig)

Image B

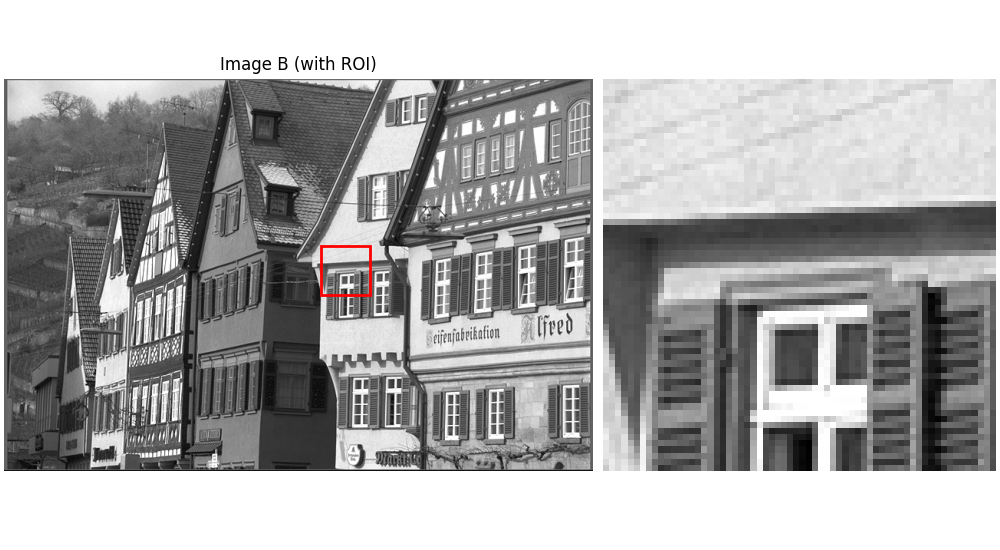

_ = show_roi_zoom(B, ax_titles=("Image B (with ROI)", None), **roi_kwargs_orig)

Discussion

In this synthetic A/B mix, each 2×2 block has A at the top-left pixel and B elsewhere (i.e., 25% A, 75% B per block). The downsampled images tell two very different stories:

• Standard interpolation (cubic) does no prefiltering before decimation. With our odd-size tweak, the 0.5× sampling grid lands exactly on the 2×2 block corners (the A pixels). So it effectively picks A at every step, producing a result that looks almost like a clean version of A in the ROI. The 75% B content is largely aliased away into lower frequencies, which is why the pattern appears to “collapse” to A there.

• Cubic antialiasing performs a proper low-pass (anti-aliasing) filtering matched to the downsampling, then decimates. On this pattern, that filter averages over each 2×2 neighbourhood, so the result tends toward 25% A + 75% B — visually “more B”, more like the mix. This is exactly what anti-aliasing should do: remove the high-frequency checkerboard content so it doesn’t fold (alias) into the downsample.

In short: interpolation without AA does sample-and-aliasing (here it locks onto A due to phase). Antialiased cubic implements the textbook low-pass-then-sample strategy, preserving the true average content.
