Antialiasing#
Compare image detail and reconstruction error after shrinking with and without projection antialiasing.
We shrink the image with either:
plain cubic interpolation (no explicit low-pass),
cubic antialiasing (oblique projection low-pass) via
"cubic-antialiasing",
then up-sample both back to the original size using each pipeline’s same resize preset. SNR and MSE are computed only on a central region to exclude boundary artifacts.
Imports#
Import the resize, array, and plotting tools used in the comparison.
import numpy as np
import time
from urllib.request import urlopen
from PIL import Image
import matplotlib.pyplot as plt
from splineops.resize import resize, resize_degrees
from splineops.utils.metrics import compute_snr_and_mse_region
from splineops.utils.plotting import plot_difference_image, show_roi_zoom
from splineops.utils.diagram import draw_two_method_comparisons
def fmt_ms(seconds: float) -> str:
"""Format seconds as a short 'X.X ms' string."""
return f"{seconds * 1000.0:.1f} ms"
# Use float32 for storage / IO. Standard cubic may use native float32 scratch;
# the 2-D antialiasing projection uses conservative float64 scratch by default.
DTYPE = np.float32

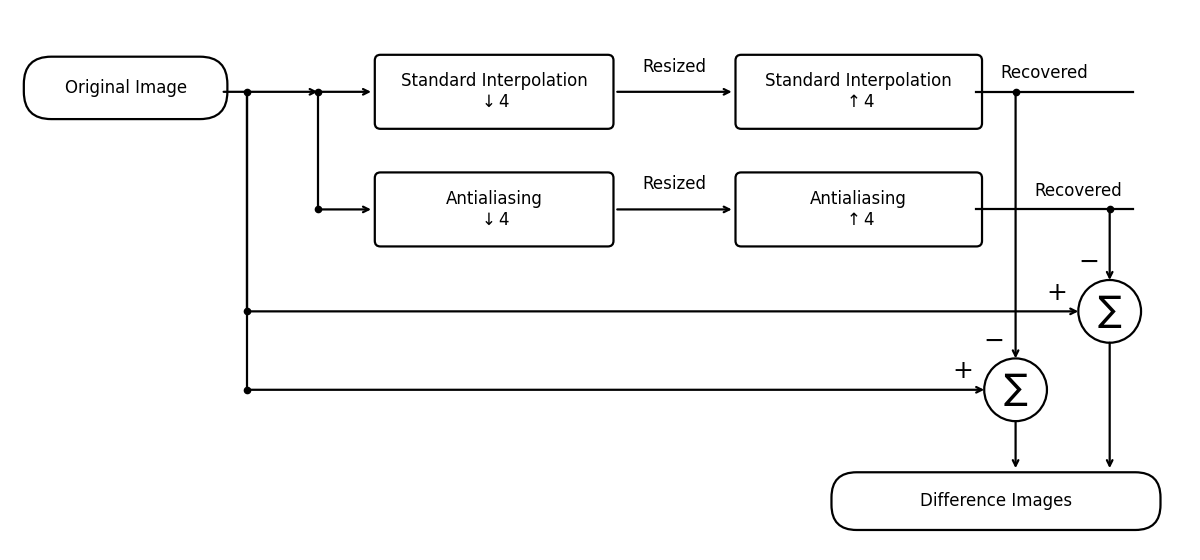

Pipeline Diagram#
Compare the two shrink-and-reconstruct pipelines before examining their images and errors.
_ = draw_two_method_comparisons(
"Standard Interpolation",
"Antialiasing",
include_downsample_labels=True,
include_upsample_labels=True,
scale_factor=4,
width=12.0,
)

Load and Normalize an Image#
Load a Kodak image, convert it to grayscale, and select a shared region of interest for visual comparisons.
url = "https://r0k.us/graphics/kodak/kodak/kodim14.png"
with urlopen(url, timeout=10) as resp:
img = Image.open(resp)
data = np.array(img, dtype=np.float64)
# Convert to [0..1] + grayscale
input_image_normalized = data / 255.0
input_image_normalized = (
input_image_normalized[:, :, 0] * 0.2989 # Red channel
+ input_image_normalized[:, :, 1] * 0.5870 # Green channel
+ input_image_normalized[:, :, 2] * 0.1140 # Blue channel
)
# Run the spline backend with float32 storage for performance. The 2-D
# antialiasing projection remains conservative internally by default.
input_image_normalized = input_image_normalized.astype(DTYPE, copy=False)
h_img, w_img = input_image_normalized.shape
# Shared parameters
zoom = np.e / 9 # ≈ 0.3020313142732272
zoom_factors_2d = (zoom, zoom)
border_fraction = 0.3 # central crop for SNR/MSE
ROI_SIZE_PX = 64
# Face-centered 64×64 ROI (for visual comparisons)
FACE_ROW, FACE_COL = 400, 600 # (row, col) approx center of the detail
# Top-left of the 64×64 box, clipped to stay inside the image
row_top = int(np.clip(FACE_ROW - ROI_SIZE_PX // 2, 0, h_img - ROI_SIZE_PX))
col_left = int(np.clip(FACE_COL - ROI_SIZE_PX // 2, 0, w_img - ROI_SIZE_PX))
roi_rect = (row_top, col_left, ROI_SIZE_PX, ROI_SIZE_PX) # (r, c, h, w)
roi_kwargs = dict(
roi_height_frac=ROI_SIZE_PX / h_img, # keeps height at 64 px (square ROI)
grayscale=True,
roi_xy=(row_top, col_left), # top-left of the ROI
)
# Mapping for resized-space ROI (used by both resized displays)
zoom_r, zoom_c = zoom_factors_2d
center_r_res = int(round(FACE_ROW * zoom_r))
center_c_res = int(round(FACE_COL * zoom_c))
roi_h_res = max(1, int(round(ROI_SIZE_PX * zoom_r)))
roi_w_res = max(1, int(round(ROI_SIZE_PX * zoom_c)))
Standard Interpolation#
Shrink with standard cubic interpolation, enlarge back to the original size, and measure error on a central crop.
t0 = time.perf_counter()
resized_2d_std = resize(
input_image_normalized,
zoom_factors=zoom_factors_2d,
method="cubic",
)
t1 = time.perf_counter()
recovered_2d_std = resize(
resized_2d_std,
output_size=input_image_normalized.shape,
method="cubic",
)
t2 = time.perf_counter()
time_2d_std_fwd = t1 - t0 # forward resize (down/up)
time_2d_std_back = t2 - t1 # backward resize (return to original size)
time_2d_std = t2 - t0 # total pipeline time
# SNR/MSE on central region (no ROI cropping here)
snr_2d_std, mse_2d_std = compute_snr_and_mse_region(
input_image_normalized,
recovered_2d_std,
border_fraction=border_fraction,
)
Antialiasing#
Use the antialiasing preset for both resize passes, keeping the output dimensions and metric region unchanged.
t0 = time.perf_counter()
resized_2d_aa = resize(
input_image_normalized,
zoom_factors=zoom_factors_2d,
method="cubic-antialiasing", # antialiased shrink
)
t1 = time.perf_counter()
recovered_2d_aa = resize(
resized_2d_aa,
output_size=input_image_normalized.shape,
method="cubic-antialiasing", # (you could also use "cubic" here)
)
t2 = time.perf_counter()
time_2d_aa_fwd = t1 - t0
time_2d_aa_back = t2 - t1
time_2d_aa = t2 - t0
snr_2d_aa, mse_2d_aa = compute_snr_and_mse_region(
input_image_normalized,
recovered_2d_aa,
border_fraction=border_fraction,
)

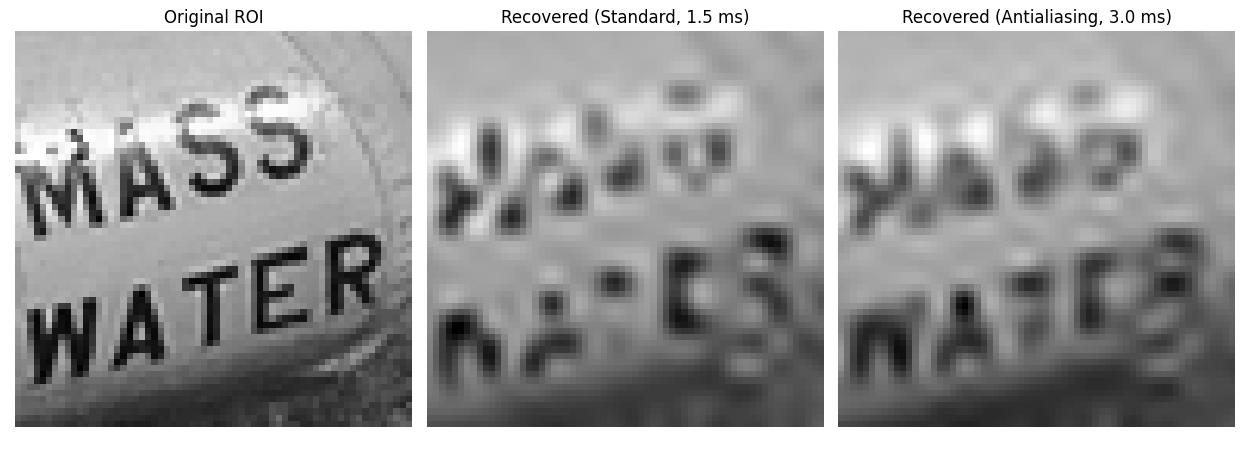

ROI Comparison#
Build a quick ROI triptych (nearest-neighbour magnification) from the recovered images for visual comparison.
def _nearest_big(roi: np.ndarray, target_h: int) -> np.ndarray:
h, w = roi.shape
mag = max(1, int(round(target_h / h)))
return np.repeat(np.repeat(roi, mag, axis=0), mag, axis=1)
roi_orig = input_image_normalized[
row_top : row_top + ROI_SIZE_PX, col_left : col_left + ROI_SIZE_PX
]
roi_std = recovered_2d_std[
row_top : row_top + ROI_SIZE_PX, col_left : col_left + ROI_SIZE_PX
]
roi_aa = recovered_2d_aa[
row_top : row_top + ROI_SIZE_PX, col_left : col_left + ROI_SIZE_PX
]
DISPLAY_H = 256
roi_big_orig = _nearest_big(roi_orig, DISPLAY_H)
roi_big_std = _nearest_big(roi_std, DISPLAY_H)
roi_big_aa = _nearest_big(roi_aa, DISPLAY_H)
fig, axes = plt.subplots(1, 3, figsize=(12.5, 4.6))
titles = [
"Original ROI",
f"Recovered (Standard, {fmt_ms(time_2d_std_back)})",
f"Recovered (Antialiasing, {fmt_ms(time_2d_aa_back)})",
]
for ax, im, title in zip(
axes,
[roi_big_orig, roi_big_std, roi_big_aa],
titles,
):
ax.imshow(im, cmap="gray", interpolation="nearest")
ax.set_title(title)
ax.axis("off")
ax.set_aspect("equal")
fig.tight_layout()
plt.show()

Original with ROI#
Locate the selected region of interest in the full-resolution reference image.
_ = show_roi_zoom(
input_image_normalized, ax_titles=("Original Image", None), **roi_kwargs
)

Resized Images#
Compare the smaller images produced by the two downsampling methods.

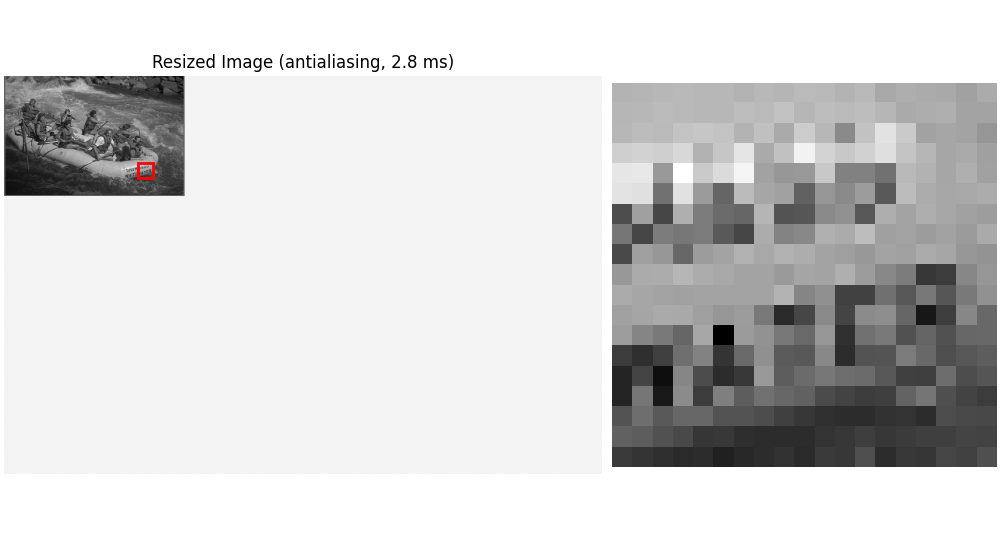

Antialiasing#
Inspect the projection-based antialiasing result and compare the retained image detail.
h_res_aa, w_res_aa = resized_2d_aa.shape
row_top_res_aa = int(np.clip(center_r_res - roi_h_res // 2, 0, h_res_aa - roi_h_res))
col_left_res_aa = int(np.clip(center_c_res - roi_w_res // 2, 0, w_res_aa - roi_w_res))
canvas_aa = np.ones(
(h_img, w_img), dtype=resized_2d_aa.dtype
) # white background in [0,1]
canvas_aa[:h_res_aa, :w_res_aa] = resized_2d_aa
roi_kwargs_on_canvas_aa = dict(
roi_height_frac=roi_h_res / h_img,
grayscale=True,
roi_xy=(row_top_res_aa, col_left_res_aa),
)
_ = show_roi_zoom(
canvas_aa,
ax_titles=(
f"Resized Image (antialiasing, {fmt_ms(time_2d_aa_fwd)})",
None,
),
**roi_kwargs_on_canvas_aa,
)

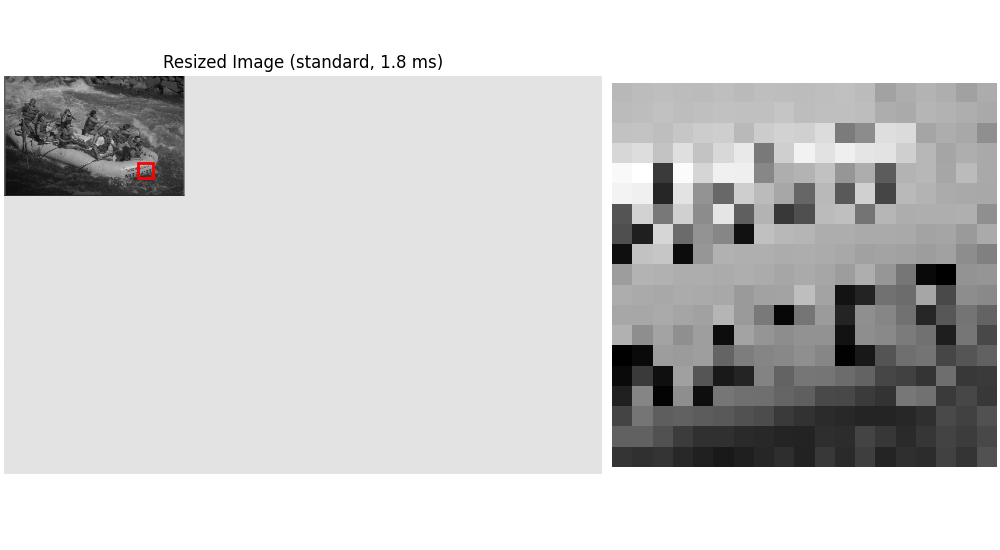

Standard Interpolation#
Inspect the cubic-interpolation result without an antialiasing prefilter.
h_res_std, w_res_std = resized_2d_std.shape
row_top_res_std = int(np.clip(center_r_res - roi_h_res // 2, 0, h_res_std - roi_h_res))
col_left_res_std = int(np.clip(center_c_res - roi_w_res // 2, 0, w_res_std - roi_w_res))
canvas_std = np.ones((h_img, w_img), dtype=resized_2d_std.dtype)
canvas_std[:h_res_std, :w_res_std] = resized_2d_std
roi_kwargs_on_canvas_std = dict(
roi_height_frac=roi_h_res / h_img,
grayscale=True,
roi_xy=(row_top_res_std, col_left_res_std),
)
_ = show_roi_zoom(
canvas_std,
ax_titles=(
f"Resized Image (standard, {fmt_ms(time_2d_std_fwd)})",
None,
),
**roi_kwargs_on_canvas_std,
)

Recovered Images#
Resize both small images back to the original dimensions to compare their reconstruction quality.

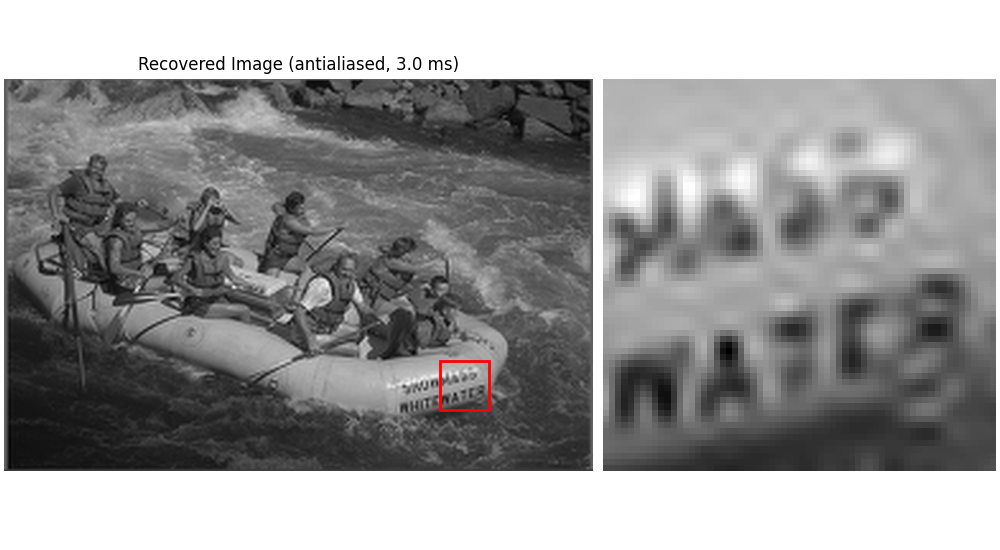

Antialiasing Pipeline#
Inspect the recovered image after projection-based shrinking and enlargement.
_ = show_roi_zoom(
recovered_2d_aa,
ax_titles=(
f"Recovered Image (antialiased, {fmt_ms(time_2d_aa_back)})",
None,
),
**roi_kwargs,
)

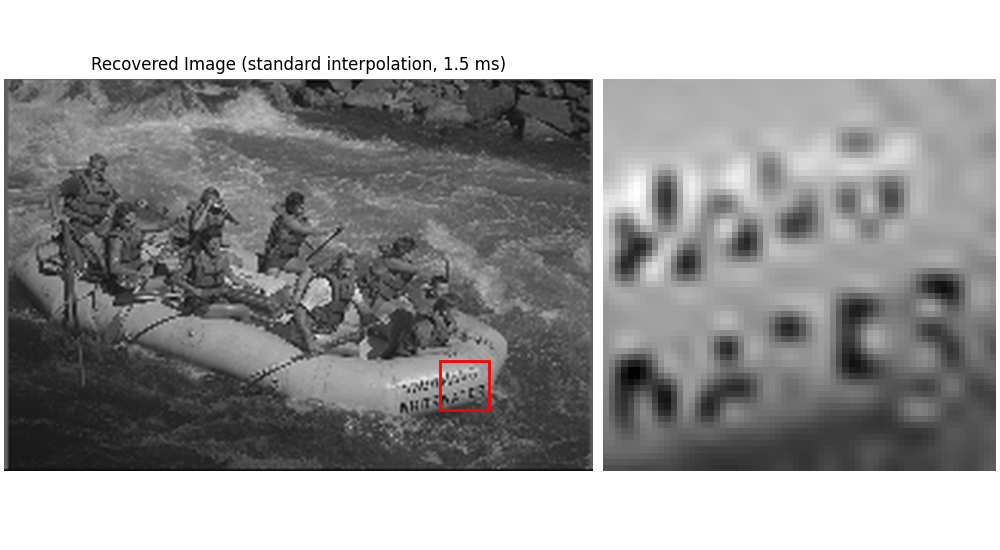

Standard Interpolation#
Inspect the cubic-interpolation result without an antialiasing prefilter.
_ = show_roi_zoom(
recovered_2d_std,
ax_titles=(
f"Recovered Image (standard interpolation, {fmt_ms(time_2d_std_back)})",
None,
),
**roi_kwargs,
)

Difference Images#
Visualize reconstruction errors to reveal details that are harder to distinguish in the recovered images.

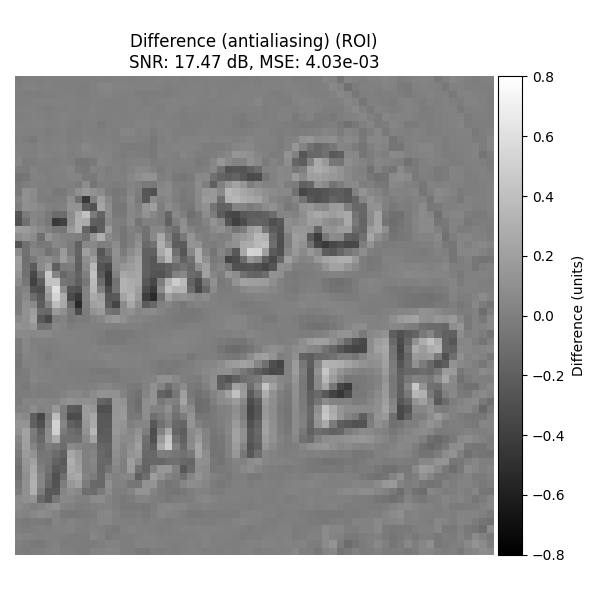

Antialiasing#
Difference with original image on ROI (SNR/MSE numbers are from the central-region metrics computed earlier).
plot_difference_image(
original=input_image_normalized,
recovered=recovered_2d_aa,
snr=snr_2d_aa,
mse=mse_2d_aa,
roi=roi_rect,
title_prefix="Difference (antialiasing)",
)

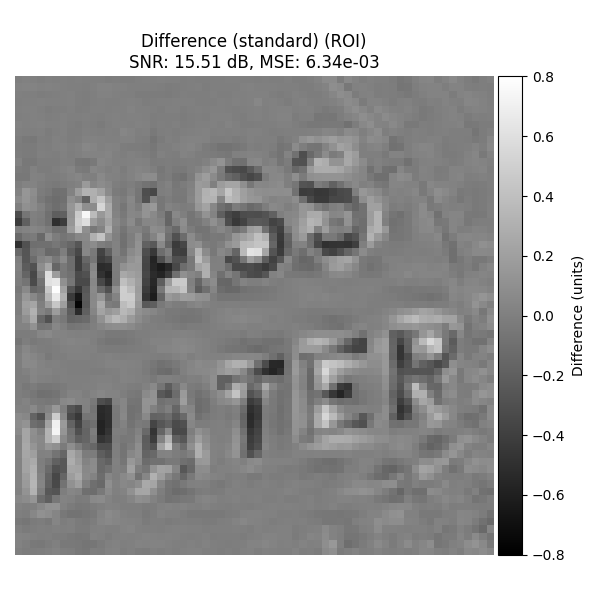

Standard Interpolation#
Difference with original image on ROI.
plot_difference_image(
original=input_image_normalized,
recovered=recovered_2d_std,
snr=snr_2d_std,
mse=mse_2d_std,
roi=roi_rect,
title_prefix="Difference (standard)",
)

Performance Comparison#
As a compact summary, we print a table with:
SNR / MSE on the central region (via border_fraction),
total (forward + backward) timing of the interpolation pipeline.
This lets you see the cost/benefit trade-off between standard interpolation and antialiased shrink/expand.
methods = [
("Standard Interpolation (cubic)", snr_2d_std, mse_2d_std, time_2d_std),
("Cubic antialiasing (shrink + up)", snr_2d_aa, mse_2d_aa, time_2d_aa),
]
header_line = f"{'Method':<40} {'SNR (dB)':>10} {'MSE':>16} {'Time (s)':>12}"
print(header_line)
print("-" * len(header_line))
for name, snr_val, mse_val, t in methods:
print(f"{name:<40} " f"{snr_val:>10.2f} " f"{mse_val:>16.2e} " f"{t:>12.4f}")
Method SNR (dB) MSE Time (s)
---------------------------------------------------------------------------------
Standard Interpolation (cubic) 15.51 6.34e-03 0.0017
Cubic antialiasing (shrink + up) 17.48 4.03e-03 0.0037
Least-Squares vs Antialiasing#
Compare the oblique antialiasing preset with a full cubic Least-Squares
projection through resize_degrees(). Both use projection for shrinking
and enlargement. The table reports SNR, MSE, and total roundtrip time; their
trade-off depends on image content, shape, and zoom factor.
t0 = time.perf_counter()
resized_2d_ls = resize_degrees(
input_image_normalized,
zoom_factors=zoom_factors_2d,
interp_degree=3,
analy_degree=3,
synthe_degree=3,
)
t1 = time.perf_counter()
recovered_2d_ls = resize_degrees(
resized_2d_ls,
output_size=input_image_normalized.shape,
interp_degree=3,
analy_degree=3,
synthe_degree=3,
)
t2 = time.perf_counter()
time_2d_ls_fwd = t1 - t0
time_2d_ls_back = t2 - t1
time_2d_ls = t2 - t0
snr_2d_ls, mse_2d_ls = compute_snr_and_mse_region(
input_image_normalized,
recovered_2d_ls,
border_fraction=border_fraction,
)
methods_ls_vs_aa = [
("Cubic antialiasing (shrink + up)", snr_2d_aa, mse_2d_aa, time_2d_aa),
("Least-Squares (cubic) shrink+up", snr_2d_ls, mse_2d_ls, time_2d_ls),
]
header_line_ls = f"{'Method':<40} {'SNR (dB)':>10} {'MSE':>16} {'Time (s)':>12}"
print()
print(header_line_ls)
print("-" * len(header_line_ls))
for name, snr_val, mse_val, t in methods_ls_vs_aa:
print(f"{name:<40} " f"{snr_val:>10.2f} " f"{mse_val:>16.2e} " f"{t:>12.4f}")
Method SNR (dB) MSE Time (s)
---------------------------------------------------------------------------------
Cubic antialiasing (shrink + up) 17.48 4.03e-03 0.0037
Least-Squares (cubic) shrink+up 17.53 3.98e-03 0.0056
Total running time of the script: (0 minutes 1.294 seconds)
