Resize Module 2D

Shrink and re-expand a 2-D RGB image with splineops, then discuss aliasing.

We start with a minimal example that calls splineops.resize.resize() directly on a single channel of the image, then move on to an RGB example with ROIs:

1. Simple grayscale resize with resize on one channel.

2. Pick a zoom factor and a single ROI.

3. Compare the first-pass shrink for standard cubic interpolation and cubic-antialiasing.

Aliasing appears when we shrink below the Nyquist limit without proper low-pass filtering: fine details fold back into lower frequencies and show up as Moiré or ripple patterns. The antialiasing preset adds a matched low-pass step to suppress these artefacts.

Imports and Helpers

import numpy as np
import matplotlib.pyplot as plt
from matplotlib import patches
from urllib.request import urlopen
from PIL import Image

from scipy.ndimage import zoom as ndi_zoom          # kept for reference, not used in 2D plots
from splineops.resize import resize                 # core N-D spline resizer

plt.rcParams.update({
    "font.size": 14,
    "axes.titlesize": 18,
    "axes.labelsize": 16,
})

# Use float32 for storage / IO (resize still computes internally in float64).
DTYPE = np.float32

STD_LABEL = "SplineOps Standard cubic"
AA_LABEL  = "SplineOps Antialiasing cubic"
STD_COLOR = "#C2410C"
AA_COLOR  = "#BE185D"

def resize_rgb(
    img: np.ndarray,
    zoom: float,
    *,
    method: str = "cubic",
) -> np.ndarray:
    """
    Resize an H×W×3 RGB image with splineops.resize.resize (channel-wise).

    Parameters
    ----------
    img : ndarray, shape (H, W, 3), values in [0, 1]
    zoom : float
        Isotropic zoom factor (same for H and W).
    method : str
        One of the splineops presets, e.g. "linear", "cubic",
        "cubic-antialiasing", ...

    Returns
    -------
    out : ndarray, shape (H', W', 3)
        Same float dtype as ``img`` (float32 in this example), values in [0, 1].
    """
    if img.ndim != 3 or img.shape[2] != 3:
        raise ValueError("resize_rgb expects an H×W×3 RGB array")

    zoom_hw = (float(zoom), float(zoom))  # (H, W) factors

    channels = []
    for c in range(img.shape[2]):
        ch = resize(
            img[..., c],
            zoom_factors=zoom_hw,
            method=method,
        )
        channels.append(ch)

    out = np.stack(channels, axis=-1)
    return np.clip(out, 0.0, 1.0)


def _roi_rect_from_frac_color(shape, roi_size_px, center_frac):
    """
    Compute a square ROI inside a color image, centered at fractional coordinates.

    Parameters
    ----------
    shape : tuple
        (H, W, 3) shape of the color image.
    roi_size_px : int
        Target side length (clipped to fit inside the image).
    center_frac : tuple of float
        (row_frac, col_frac) in [0, 1] × [0, 1].

    Returns
    -------
    (row_top, col_left, height, width)
    """
    H, W, _ = shape
    row_frac, col_frac = center_frac

    size = int(min(roi_size_px, H, W))
    if size < 1:
        size = min(H, W)

    center_r = int(round(row_frac * H))
    center_c = int(round(col_frac * W))

    row_top = int(np.clip(center_r - size // 2, 0, H - size))
    col_left = int(np.clip(center_c - size // 2, 0, W - size))

    return row_top, col_left, size, size


def _nearest_big_color(roi: np.ndarray, target_h: int = 256) -> np.ndarray:
    """
    Enlarge a small color ROI (H×W×3) with nearest-neighbour so that its
    height is ~target_h pixels.
    """
    h, w, _ = roi.shape
    mag = max(1, int(round(target_h / max(h, 1))))
    return np.repeat(np.repeat(roi, mag, axis=0), mag, axis=1)


def show_intro_color(
    original_uint8: np.ndarray,
    shrunk_uint8: np.ndarray,
    roi_rect,
    zoom: float,
    label: str,
    degree_label: str,
) -> None:
    """
    2×2 figure with the same wording style as the benchmarking intro:

    Row 1:
      - Original image with ROI (H×W px)
      - Original ROI (h×w px, NN magnified)

    Row 2:
      - First-pass resized image on a white canvas, with mapped ROI box
      - First-pass ROI (h'×w' px, NN magnified)
    """
    H, W, _ = original_uint8.shape
    row0, col0, roi_h, roi_w = roi_rect

    # Original ROI and its NN magnification
    roi_orig = original_uint8[row0:row0 + roi_h, col0:col0 + roi_w, :]
    roi_orig_big = _nearest_big_color(roi_orig, target_h=256)

    # Shrunk image geometry
    Hs, Ws, _ = shrunk_uint8.shape
    center_r = row0 + roi_h / 2.0
    center_c = col0 + roi_w / 2.0

    roi_h_res = max(1, int(round(roi_h * zoom)))
    roi_w_res = max(1, int(round(roi_w * zoom)))

    if roi_h_res > Hs or roi_w_res > Ws:
        roi_shrunk = shrunk_uint8
        row_top_res = 0
        col_left_res = 0
        roi_h_res = Hs
        roi_w_res = Ws
    else:
        center_r_res = int(round(center_r * zoom))
        center_c_res = int(round(center_c * zoom))
        row_top_res = int(np.clip(center_r_res - roi_h_res // 2, 0, Hs - roi_h_res))
        col_left_res = int(np.clip(center_c_res - roi_w_res // 2, 0, Ws - roi_w_res))
        roi_shrunk = shrunk_uint8[
            row_top_res:row_top_res + roi_h_res,
            col_left_res:col_left_res + roi_w_res,
            :
        ]

    roi_shrunk_big = _nearest_big_color(roi_shrunk, target_h=256)

    # Place shrunk image on a white canvas of the same size as original
    canvas = np.full_like(original_uint8, 255)
    h_copy = min(H, Hs)
    w_copy = min(W, Ws)
    canvas[:h_copy, :w_copy, :] = shrunk_uint8[:h_copy, :w_copy, :]

    fig, axes = plt.subplots(2, 2, figsize=(10, 8))

    # Row 1, left: original with ROI box
    ax = axes[0, 0]
    ax.imshow(original_uint8)
    rect = patches.Rectangle(
        (col0, row0),
        roi_w,
        roi_h,
        linewidth=2,
        edgecolor="red",
        facecolor="none",
    )
    ax.add_patch(rect)
    ax.set_title(
        f"Original image with ROI ({H}×{W} px)",
        fontsize=12,
    )
    ax.axis("off")

    # Row 1, right: magnified original ROI
    ax = axes[0, 1]
    ax.imshow(roi_orig_big)
    ax.set_title(
        f"Original ROI ({roi_h}×{roi_w} px, NN magnified)",
        fontsize=12,
    )
    ax.axis("off")

    # Row 2, left: first-pass resized image on canvas with mapped ROI box
    ax = axes[1, 0]
    ax.imshow(canvas)
    if row_top_res < h_copy and col_left_res < w_copy:
        box_h = min(roi_h_res, h_copy - row_top_res)
        box_w = min(roi_w_res, w_copy - col_left_res)
        rect2 = patches.Rectangle(
            (col_left_res, row_top_res),
            box_w,
            box_h,
            linewidth=2,
            edgecolor="red",
            facecolor="none",
        )
        ax.add_patch(rect2)
    # Row 2, left: first-pass resized image on canvas with mapped ROI box
    if label.lower().startswith("standard"):
        ax.set_title(
            f"{STD_LABEL}\n(zoom ×{zoom:g}, {Hs}×{Ws} px)",
            fontsize=12,
            color=STD_COLOR,
            fontweight="bold",
            multialignment="center",
        )

    elif label.lower().startswith("antialiasing"):
        ax.set_title(
            f"{AA_LABEL}\n(zoom ×{zoom:g}, {Hs}×{Ws} px)",
            fontsize=12,
            color=AA_COLOR,
            fontweight="bold",
            multialignment="center",
        )
    else:
        ax.set_title(
            f"{label} ({degree_label}, zoom ×{zoom:g}, {Hs}×{Ws} px)",
            fontsize=12,
        )
    ax.axis("off")

    # Row 2, right: magnified resized ROI
    ax = axes[1, 1]
    ax.imshow(roi_shrunk_big)
    # Row 2, right: magnified resized ROI
    if label.lower().startswith("standard"):
        title_kw = dict(fontsize=12, color=STD_COLOR, fontweight="bold")
        ax.set_title(
            f"{label} ROI ({roi_h_res}×{roi_w_res} px, NN magnified)",
            **title_kw,
        )

    elif label.lower().startswith("antialiasing"):
        title_kw = dict(fontsize=12, color=AA_COLOR, fontweight="bold")
        ax.set_title(
            f"{label} ROI ({roi_h_res}×{roi_w_res} px, NN magnified)",
            **title_kw,
        )

    else:
        ax.set_title(
            f"{label} ROI ({roi_h_res}×{roi_w_res} px, NN magnified)",
            fontsize=12,
        )
    ax.axis("off")

    fig.tight_layout()
    plt.show()

Load and Normalize an Image

We now move to a real 2D example using a Kodak color image. The data is stored as float32 in [0, 1] for splineops.

url = "https://r0k.us/graphics/kodak/kodak/kodim19.png"
with urlopen(url, timeout=10) as resp:
    img = Image.open(resp)
data = np.asarray(img, dtype=DTYPE) / DTYPE(255.0)          # H × W × 3, range [0, 1]
data_uint8 = (np.clip(data, 0.0, 1.0) * 255).astype(np.uint8)

H0, W0, _ = data_uint8.shape
print(f"Loaded kodim19: shape={H0}×{W0} px")

Loaded kodim19: shape=768×512 px

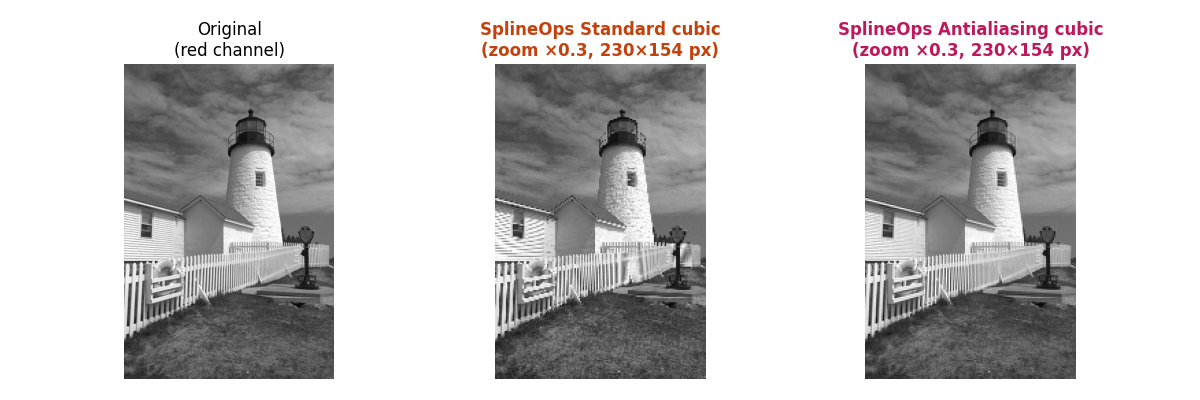

Simple 2D Resize Call

Before using helpers and ROIs, we start with a minimal example that calls splineops.resize.resize() directly on a single (grayscale) channel. This highlights the basic API: you provide an array, per-axis zoom factors, and a method string.

# Take a single channel (e.g., red) to keep things simple
gray = data[..., 0]  # shape H×W, values in [0, 1]

simple_zoom = 0.3  # shrink by a factor of 0.3 in each direction

gray_cubic = resize(
    gray,
    zoom_factors=(simple_zoom, simple_zoom),
    method="cubic",
)

gray_aa = resize(
    gray,
    zoom_factors=(simple_zoom, simple_zoom),
    method="cubic-antialiasing",
)

TITLE_FS = 12

fig, axes = plt.subplots(1, 3, figsize=(12, 4))
axes[0].imshow(gray, cmap="gray", vmin=0.0, vmax=1.0)
axes[0].set_title(
    "Original\n(red channel)",
    fontsize=TITLE_FS,
    multialignment="center",
)
axes[1].imshow(gray_cubic, cmap="gray", vmin=0.0, vmax=1.0)
axes[1].set_title(
    f"{STD_LABEL}\n(zoom ×{simple_zoom:g}, {gray_cubic.shape[0]}×{gray_cubic.shape[1]} px)",
    fontsize=TITLE_FS,
    color=STD_COLOR,
    fontweight="bold",
    multialignment="center",
)
axes[2].imshow(gray_aa, cmap="gray", vmin=0.0, vmax=1.0)
axes[2].set_title(
    f"{AA_LABEL}\n(zoom ×{simple_zoom:g}, {gray_aa.shape[0]}×{gray_aa.shape[1]} px)",
    fontsize=TITLE_FS,
    color=AA_COLOR,
    fontweight="bold",
    multialignment="center",
)
for ax in axes:
    ax.axis("off")
fig.tight_layout()
plt.show()

ROI and RGB Shrink With Antialiasing

We now follow the same spirit as the benchmarking intro:

1. Pick a zoom factor.

2. Pick a single ROI.

3. Compare the first-pass shrink for standard cubic interpolation and antialiasing on the full RGB image.

# Use the same ROI position as in the benchmarking example for kodim19
ROI_SIZE_PX = 256
ROI_CENTER_FRAC = (0.65, 0.35)
roi_rect = _roi_rect_from_frac_color(data_uint8.shape, ROI_SIZE_PX, ROI_CENTER_FRAC)

# Shrink factor (same spirit as in other 2D examples)
shrink_factor = 0.3

# 3) Shrink with splineops (channel-wise): standard cubic
shrunken_cubic_f = resize_rgb(
    data,
    shrink_factor,
    method="cubic",         # plain cubic interpolation (no explicit anti-aliasing)
)
shrunken_cubic = (np.clip(shrunken_cubic_f, 0.0, 1.0) * 255).astype(np.uint8)

# 4) Shrink with splineops: cubic-antialiasing
shrunken_aa_f = resize_rgb(
    data,
    shrink_factor,
    method="cubic-antialiasing",  # antialiasing shrink, degree 3
)
shrunken_aa = (np.clip(shrunken_aa_f, 0.0, 1.0) * 255).astype(np.uint8)

Standard Cubic Shrink

Standard cubic interpolation gives a smooth-looking small image, but it does not apply an explicit low-pass before decimation. High-frequency content from the original folds back (aliases) into lower frequencies, which can be spotted as spurious ripples or Moiré patterns in the ROI.

show_intro_color(
    original_uint8=data_uint8,
    shrunk_uint8=shrunken_cubic,
    roi_rect=roi_rect,
    zoom=shrink_factor,
    label="Standard cubic",
    degree_label="Cubic",
)

Cubic-Antialiasing Shrink

The “cubic-antialiasing” preset inserts a projection-based low-pass filter before shrinking. The zoomed ROI shows that most of the Moiré pattern is removed, while larger-scale edges and contrast are preserved.

show_intro_color(
    original_uint8=data_uint8,
    shrunk_uint8=shrunken_aa,
    roi_rect=roi_rect,
    zoom=shrink_factor,
    label="Antialiasing",
    degree_label="Cubic",
)

Animation: Cubic vs Cubic-Antialiasing

Side-by-side comparison over a zoom sweep. The animation starts at z=0.30 and then goes downwards.

Row 1: Original (fixed) + Downsampled (on white canvas) Row 2: Recovered (round-trip) Row 3: Signed error (rec−orig), normalized with a shared scale

from matplotlib import animation

METHOD_STD = "cubic"
METHOD_AA  = "cubic-antialiasing"

INTERVAL_MS = 900
TITLE_FS = 12
Z_START = 0.30

# --- Zoom values: keep the original distribution, but start the animation at Z_START
zoom_low   = np.geomspace(0.01, 0.15, 6,  endpoint=False)   # < 0.15
zoom_focus = np.geomspace(0.15, 0.50, 22, endpoint=False)   # [0.15, 0.50)
zoom_mid   = np.geomspace(0.50, 0.80, 6,  endpoint=True)    # [0.50, 0.80]
zoom_top   = np.array([0.85, 0.90, 0.95, 1.0])

zoom_values_full = np.sort(
    np.unique(np.concatenate([zoom_low, zoom_focus, zoom_mid, zoom_top, [Z_START]]))
)[::-1]  # 1.0 -> ... -> small

start_idx = int(np.where(zoom_values_full <= Z_START)[0][0])

tail = zoom_values_full[start_idx:]          # Z_START -> ... -> small
head = zoom_values_full[: start_idx + 1]     # 1.0 -> ... -> Z_START

# Final sequence: 0.30 -> ... -> 0.01 -> 1.0 -> ... -> 0.30
zoom_values_cmp = np.concatenate([tail, head]).astype(float)

orig_f = np.clip(data, 0.0, 1.0)
H0, W0, _ = orig_f.shape
orig_u8 = (orig_f * 255.0 + 0.5).astype(np.uint8)

# --- Precompute frames (store uint8 to keep memory low) ---------------------
def _roundtrip_frames(method: str):
    canv: list[np.ndarray] = []
    recs: list[np.ndarray] = []
    for z in zoom_values_cmp:
        # Downsample
        down_f = resize_rgb(orig_f, z, method=method)
        down_f = np.clip(down_f, 0.0, 1.0)
        down_u8 = (down_f * 255.0 + 0.5).astype(np.uint8)

        # Canvas (white, original size)
        canvas = np.full_like(orig_u8, 255)
        h1, w1, _ = down_u8.shape
        canvas[:h1, :w1, :] = down_u8
        canv.append(canvas)

        # Recover (round-trip)
        rec_channels = [
            resize(down_f[..., c], output_size=(H0, W0), method=method)
            for c in range(3)
        ]
        rec_f = np.clip(np.stack(rec_channels, axis=-1), 0.0, 1.0)
        rec_u8 = (rec_f * 255.0 + 0.5).astype(np.uint8)
        recs.append(rec_u8)

    return canv, recs

canv_std, recs_std = _roundtrip_frames(METHOD_STD)
canv_aa,  recs_aa  = _roundtrip_frames(METHOD_AA)

# --- Signed normalized error maps (shared scale across BOTH methods + frames) ---
def _u8_to_gray01(u8_rgb: np.ndarray) -> np.ndarray:
    u = u8_rgb.astype(np.float32) / 255.0
    return (0.2989 * u[..., 0] + 0.5870 * u[..., 1] + 0.1140 * u[..., 2]).astype(np.float32)

orig_gray01 = _u8_to_gray01(orig_u8)
orig_energy = float(np.sum(orig_gray01.astype(np.float64) ** 2))

def _diff01(rec_u8: np.ndarray) -> np.ndarray:
    return _u8_to_gray01(rec_u8) - orig_gray01  # signed

max_abs = 0.0
for r in (recs_std + recs_aa):
    max_abs = max(max_abs, float(np.max(np.abs(_diff01(r)))))
max_abs = max(max_abs, 1e-12)

def _diff_norm(rec_u8: np.ndarray) -> np.ndarray:
    d = _diff01(rec_u8)
    n = 0.5 + 0.5 * (d / max_abs)
    return np.clip(n, 0.0, 1.0).astype(np.float32)

diffs_std = [_diff_norm(r) for r in recs_std]
diffs_aa  = [_diff_norm(r) for r in recs_aa]

# --- SNR per frame (grayscale), shown in the recovered titles -----------------
def _snr_db_from_rec(rec_u8: np.ndarray) -> float:
    d = _diff01(rec_u8).astype(np.float64, copy=False)
    den = float(np.sum(d * d))
    if den == 0.0:
        return float("inf")
    if orig_energy == 0.0:
        return -float("inf")
    return 10.0 * float(np.log10(orig_energy / den))

def _fmt_snr(v: float) -> str:
    if np.isposinf(v):
        return "∞"
    if np.isneginf(v):
        return "-∞"
    return f"{v:.2f} dB"

snr_std = [_snr_db_from_rec(r) for r in recs_std]
snr_aa  = [_snr_db_from_rec(r) for r in recs_aa]

# --- Layout: 3 columns (Original | Std | AA), 3 rows (Down | Rec | Error) ----
fig = plt.figure(figsize=(13, 9), constrained_layout=True)
gs = fig.add_gridspec(nrows=3, ncols=3, width_ratios=[1.05, 1.0, 1.0])

ax_orig     = fig.add_subplot(gs[0, 0])
ax_orig_mid = fig.add_subplot(gs[1, 0])  # spacer -> used as row label ("Recovered")
ax_orig_err = fig.add_subplot(gs[2, 0])  # legend host

ax_down_std = fig.add_subplot(gs[0, 1])
ax_down_aa  = fig.add_subplot(gs[0, 2])
ax_rec_std  = fig.add_subplot(gs[1, 1])
ax_rec_aa   = fig.add_subplot(gs[1, 2])
ax_err_std  = fig.add_subplot(gs[2, 1])
ax_err_aa   = fig.add_subplot(gs[2, 2])

for ax in (ax_orig, ax_orig_mid, ax_orig_err,
           ax_down_std, ax_down_aa, ax_rec_std, ax_rec_aa, ax_err_std, ax_err_aa):
    ax.axis("off")

# Row label for recovered row
ax_orig_mid.text(
    0.5, 0.5, "Recovered",
    transform=ax_orig_mid.transAxes,
    ha="center", va="center",
    fontsize=TITLE_FS,
)

# --- Legend bar in bottom-left cell ------------------------------------------
ax_leg_host = ax_orig_err
ax_leg_host.axis("off")

leg = ax_leg_host.inset_axes([0.42, 0.05, 0.18, 0.90])
leg.axis("off")

H_leg = 256
W_leg = 16
y = np.linspace(1.0, 0.0, H_leg, dtype=np.float32)
legend_img = np.repeat(y[:, None], W_leg, axis=1)
leg.imshow(legend_img, cmap="gray", vmin=0.0, vmax=1.0, aspect="auto")

ax_leg_host.text(0.62, 0.05, "-1", transform=ax_leg_host.transAxes, fontsize=9, va="bottom", ha="left")
ax_leg_host.text(0.62, 0.50, "0",  transform=ax_leg_host.transAxes, fontsize=9, va="center", ha="left")
ax_leg_host.text(0.62, 0.95, "+1", transform=ax_leg_host.transAxes, fontsize=9, va="top", ha="left")
ax_leg_host.text(0.50, 1.02, "Diff legend", transform=ax_leg_host.transAxes,
                 fontsize=TITLE_FS, va="bottom", ha="center")

# Titles / images
ax_orig.set_title("Original", fontsize=TITLE_FS)
ax_orig.imshow(orig_u8)

STD_COLOR = "#C2410C"
AA_COLOR  = "#BE185D"

STD_LABEL = "SplineOps Standard cubic"
AA_LABEL  = "SplineOps Antialiasing cubic"

# Row 1: Downsampled
t_down_std = ax_down_std.set_title(
    f"{STD_LABEL} (z={zoom_values_cmp[0]:.3f})",
    fontsize=TITLE_FS,
    color=STD_COLOR,
    fontweight="bold",
)
t_down_aa  = ax_down_aa.set_title(
    f"{AA_LABEL} (z={zoom_values_cmp[0]:.3f})",
    fontsize=TITLE_FS,
    color=AA_COLOR,
    fontweight="bold",
)

im_down_std = ax_down_std.imshow(canv_std[0])
im_down_aa  = ax_down_aa.imshow(canv_aa[0])

# Row 2: Recovered (no "Recovered," prefix)
t_rec_std = ax_rec_std.set_title(
    f"{STD_LABEL} (SNR={_fmt_snr(snr_std[0])})",
    fontsize=TITLE_FS,
    color=STD_COLOR,
    fontweight="bold",
)
t_rec_aa  = ax_rec_aa.set_title(
    f"{AA_LABEL} (SNR={_fmt_snr(snr_aa[0])})",
    fontsize=TITLE_FS,
    color=AA_COLOR,
    fontweight="bold",
)
im_rec_std = ax_rec_std.imshow(recs_std[0])
im_rec_aa  = ax_rec_aa.imshow(recs_aa[0])

# Row 3: Signed error (shared scale already baked into diffs_*)
ax_err_std.set_title("Signed error", fontsize=TITLE_FS)
ax_err_aa.set_title ("Signed error", fontsize=TITLE_FS)
im_err_std = ax_err_std.imshow(diffs_std[0], cmap="gray", vmin=0.0, vmax=1.0)
im_err_aa  = ax_err_aa.imshow (diffs_aa[0],  cmap="gray", vmin=0.0, vmax=1.0)

def animate_frame(i: int):
    z = float(zoom_values_cmp[i])

    im_down_std.set_data(canv_std[i])
    im_down_aa.set_data(canv_aa[i])

    im_rec_std.set_data(recs_std[i])
    im_rec_aa.set_data(recs_aa[i])

    im_err_std.set_data(diffs_std[i])
    im_err_aa.set_data(diffs_aa[i])

    t_down_std.set_text(f"{STD_LABEL} (z={z:.3f})")
    t_down_aa.set_text (f"{AA_LABEL} (z={z:.3f})")

    t_rec_std.set_text(f"{STD_LABEL} (SNR={_fmt_snr(snr_std[i])})")
    t_rec_aa.set_text (f"{AA_LABEL} (SNR={_fmt_snr(snr_aa[i])})")

    return (
        im_down_std, im_down_aa,
        im_rec_std,  im_rec_aa,
        im_err_std,  im_err_aa,
        t_down_std,  t_down_aa,
        t_rec_std,   t_rec_aa,
    )

ani_cmp = animation.FuncAnimation(
    fig,
    animate_frame,
    frames=len(zoom_values_cmp),
    interval=INTERVAL_MS,
    blit=True,
)

Export Animation

Writes into: <generated static dir>/_static/animations/ No-op when run normally by users.

from splineops.utils.sphinx import export_animation_mp4_and_html

export_animation_mp4_and_html(
    ani_cmp,
    stem="resize_module_2d_cubic_vs_aa",
    interval_ms=INTERVAL_MS,
    dpi=80,
    force=True,
)

(PosixPath('/home/runner/work/splineops/splineops/docs/_build/_generated_static/animations/resize_module_2d_cubic_vs_aa.mp4'), PosixPath('/home/runner/work/splineops/splineops/docs/_build/_generated_static/animations/resize_module_2d_cubic_vs_aa.html'))
