Class TensorSpline

Showcase TensorSpline class basic functionality.

Imports

import numpy as np
import matplotlib.pyplot as plt
from splineops.interpolate.tensorspline import TensorSpline

Data Preparation

General configuration and sample data.

dtype = "float32"

nx, ny = 2, 5
xmin, xmax = 0, 2.0
ymin, ymax = 0, 5.0
xx = np.linspace(xmin, xmax, nx, dtype=dtype)
yy = np.linspace(ymin, ymax, ny, dtype=dtype)
coordinates = xx, yy
prng = np.random.default_rng(seed=5250)
data = prng.standard_normal(size=tuple(c.size for c in coordinates))
data = np.ascontiguousarray(data, dtype=dtype)

TensorSpline Setup

Configure bases and modes for TensorSpline.

bases = "bspline3"
modes = "mirror"
tensor_spline = TensorSpline(data=data, coordinates=coordinates, bases=bases, modes=modes)

Evaluation Coordinates

Define evaluation coordinates to extend and oversample the original grid.

dx = (xx[-1] - xx[0]) / (nx - 1)
dy = (yy[-1] - yy[0]) / (ny - 1)
pad_fct = 1.0
px = pad_fct * nx * dx
py = pad_fct * ny * dy
eval_xx = np.linspace(xx[0] - px, xx[-1] + px, 100 * nx)
eval_yy = np.linspace(yy[0] - py, yy[-1] + py, 100 * ny)
eval_coords = eval_xx, eval_yy

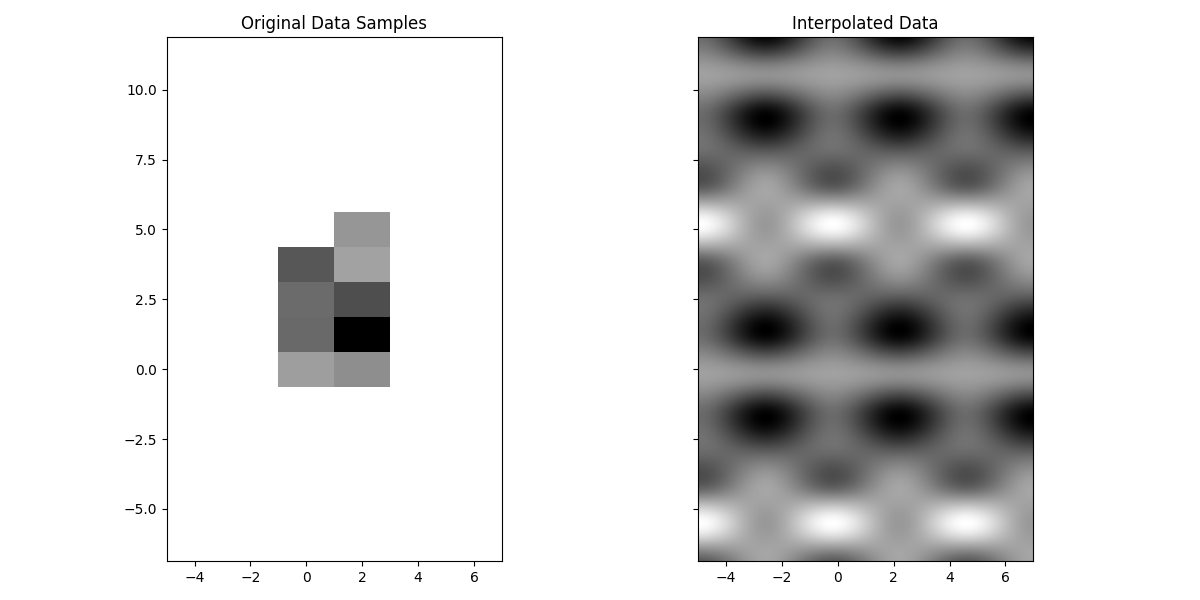

Interpolation and Visualization

Perform interpolation and visualize the original and interpolated data.

data_eval = tensor_spline(coordinates=eval_coords)

extent = [xx[0] - dx / 2, xx[-1] + dx / 2, yy[0] - dy / 2, yy[-1] + dy / 2]
eval_extent = [
    eval_xx[0] - dx / 2,
    eval_xx[-1] + dx / 2,
    eval_yy[0] - dy / 2,
    eval_yy[-1] + dy / 2,
]

fig, axes = plt.subplots(nrows=1, ncols=2, figsize=(12, 6), sharex="all", sharey="all")
axes[0].imshow(data.T, extent=extent, cmap="gray", aspect="equal")
axes[0].set_title("Original Data Samples")
axes[1].imshow(data_eval.T, extent=eval_extent, cmap="gray", aspect="equal")
axes[1].set_title("Interpolated Data")
plt.tight_layout()
plt.show()

GPU Support

We leverage the GPU for TensorSpline if cupy is installed. If cupy is not available, we skip this section.

try:
    import cupy as cp
    HAS_CUPY = True
except ImportError:
    HAS_CUPY = False

if not HAS_CUPY:
    print("CuPy is not installed, skipping GPU demonstration.")
else:
    # Convert existing data/coordinates to CuPy
    data_cp = cp.asarray(data)
    coords_cp = tuple(cp.asarray(c) for c in coordinates)

    # Create CuPy-based spline
    ts_cp = TensorSpline(data=data_cp, coordinates=coords_cp, bases=bases, modes=modes)

    # Convert evaluation coordinates to CuPy
    eval_coords_cp = tuple(cp.asarray(c) for c in eval_coords)

    # Evaluate on the GPU
    data_eval_cp = ts_cp(coordinates=eval_coords_cp)

    # Compare with NumPy evaluation
    # (Ensure you already have data_eval from the CPU version above.)
    data_eval_cp_np = data_eval_cp.get()  # Move from GPU to CPU
    diff = data_eval_cp_np - data_eval  # 'data_eval' is from the CPU TensorSpline
    mse = np.mean(diff**2)
    print(f"Max abs diff (CPU vs GPU): {np.max(np.abs(diff)):.3e}")
    print(f"MSE (CPU vs GPU): {mse:.3e}")

CuPy is not installed, skipping GPU demonstration.
