3D Volume Smoothing

We use the smooth module to smooth N-dimensional data.

Imports

import numpy as np
import matplotlib.pyplot as plt
from splineops.denoise.smoothing_spline import smoothing_spline_nd

Sinusoid 3D Data

def demo_3d_sinusoid():
    # Desired cutoff frequency
    cutoff_freq = 0.1  # Adjusted cutoff frequency
    gamma = 2.0        # Order of the spline operator

    # Compute lambda_ based on cutoff frequency
    lambda_ = (1 / (2 * np.pi * cutoff_freq)) ** (2 * gamma)

    snr_db = 10.0   # Desired SNR in dB

    # Create a 3D clean volume (sinusoid)
    x = np.linspace(0, 1, 64)
    y = np.linspace(0, 1, 64)
    z = np.linspace(0, 1, 64)
    X, Y, Z = np.meshgrid(x, y, z, indexing='ij')
    clean_volume = np.sin(8 * np.pi * X) + np.sin(8 * np.pi * Y) + np.sin(8 * np.pi * Z)
    clean_volume = (clean_volume - clean_volume.min()) / (clean_volume.max() - clean_volume.min())  # Normalize to [0, 1]

    # Add noise
    signal_power = np.mean(clean_volume ** 2)
    sigma = np.sqrt(signal_power / (10 ** (snr_db / 10)))
    noise = np.random.randn(*clean_volume.shape) * sigma
    noisy_volume = clean_volume + noise

    # Apply smoothing spline
    smoothed_volume = smoothing_spline_nd(noisy_volume, lambda_, gamma)

    # Compute SNRs
    snr_noisy = compute_snr(clean_volume, noisy_volume)
    snr_smoothed = compute_snr(clean_volume, smoothed_volume)
    snr_improvement = snr_smoothed - snr_noisy

    print("3D Sinusoid Volume:")
    print(f"SNR of noisy volume: {snr_noisy:.2f} dB")
    print(f"SNR after smoothing: {snr_smoothed:.2f} dB")
    print(f"SNR improvement: {snr_improvement:.2f} dB\n")

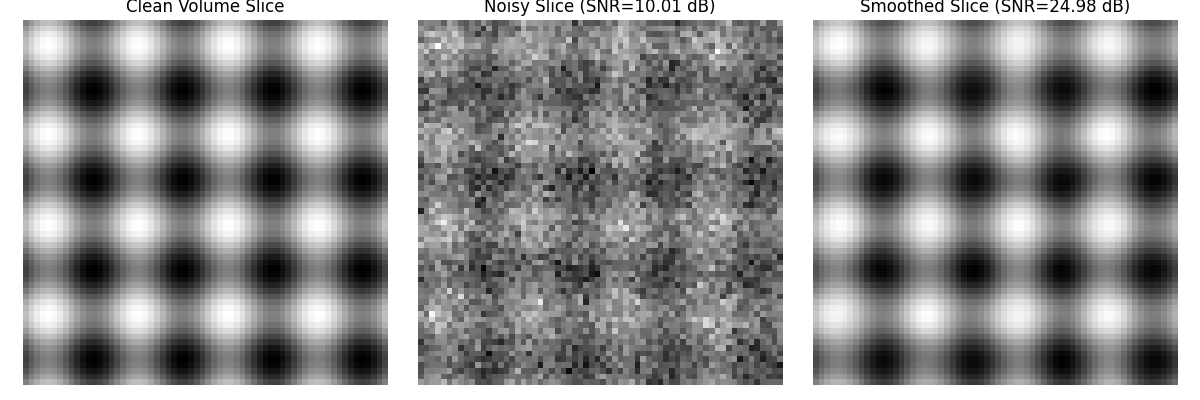

    # Visualize one slice of the volume (middle slice)
    slice_index = clean_volume.shape[2] // 2

    plt.figure(figsize=(12, 4))

    plt.subplot(1, 3, 1)
    plt.imshow(clean_volume[:, :, slice_index], cmap='gray')
    plt.title('Clean Volume Slice')
    plt.axis('off')

    plt.subplot(1, 3, 2)
    plt.imshow(noisy_volume[:, :, slice_index], cmap='gray')
    plt.title(f'Noisy Slice (SNR={snr_noisy:.2f} dB)')
    plt.axis('off')

    plt.subplot(1, 3, 3)
    plt.imshow(smoothed_volume[:, :, slice_index], cmap='gray')
    plt.title(f'Smoothed Slice (SNR={snr_smoothed:.2f} dB)')
    plt.axis('off')

    plt.tight_layout()
    plt.show()

def compute_snr(clean_signal, noisy_signal):
    """
    Compute the Signal-to-Noise Ratio (SNR).

    Parameters:
    clean_signal (np.ndarray): Original clean signal.
    noisy_signal (np.ndarray): Noisy signal.

    Returns:
    float: SNR value in decibels (dB).
    """
    signal_power = np.mean(clean_signal ** 2)
    noise_power = np.mean((noisy_signal - clean_signal) ** 2)
    snr = 10 * np.log10(signal_power / noise_power)
    return snr

# Run the 3D sinusoid demo
demo_3d_sinusoid()

3D Sinusoid Volume:
SNR of noisy volume: 10.01 dB
SNR after smoothing: 24.98 dB
SNR improvement: 14.97 dB
