Standard Interpolation

Interpolate 2D images with standard interpolation. Compare them to SciPy zoom. We compute SNR and MSE on a face ROI (not the whole frame) to focus on detail and avoid boundary artifacts.

Imports

import numpy as np

import requests
from io import BytesIO
from PIL import Image

from splineops.utils import (
    resize_and_compute_metrics,      # resampling + metrics (returns SNR/MSE)
    compute_snr_and_mse_region,      # ROI / mask aware metrics for pairwise diffs
    plot_difference_image,
    show_roi_zoom,
    draw_standard_vs_scipy_pipeline,
)

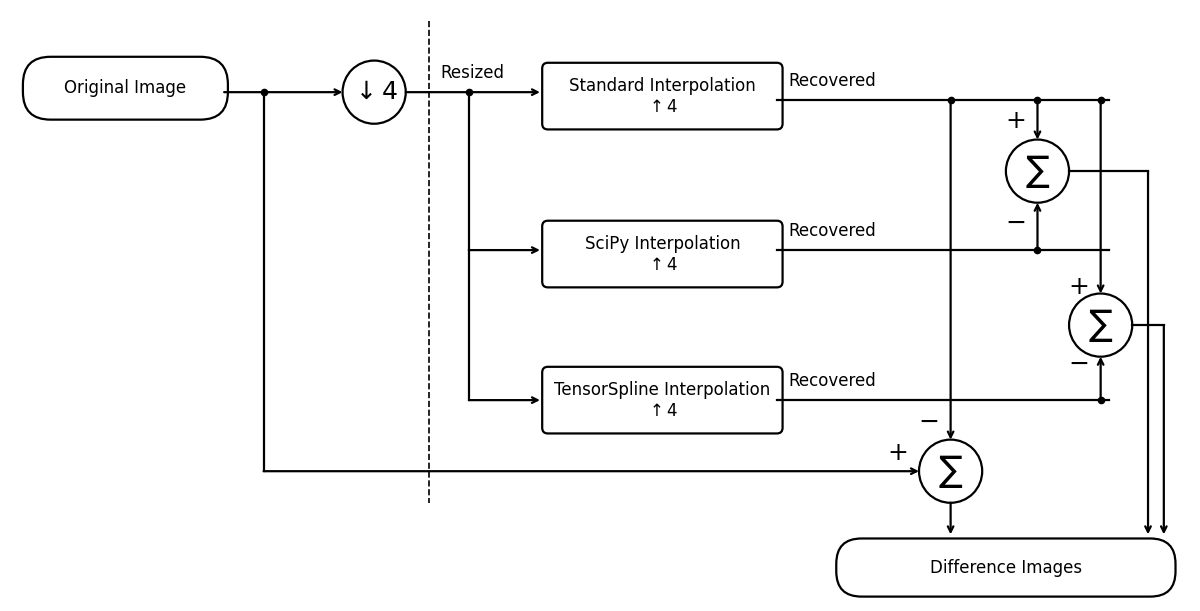

Pipeline Diagram

These experiments validate the standard interpolation against SciPy’s by showing they produce (nearly) the same result, and where tiny differences are.

_ = draw_standard_vs_scipy_pipeline(
    show_separator=True,          # keep dashed divider
    show_plus=False,              # no far-right '+'
    include_upsample_labels=True, # show '↑ 4' inside the boxes
    width=12.0                    # figure width in inches (height auto)
)

Load and Normalize an Image

Here, we load an example image from an online repository and convert to grayscale in [0, 1].

url = 'https://r0k.us/graphics/kodak/kodak/kodim14.png'
response = requests.get(url)
img = Image.open(BytesIO(response.content))
data = np.array(img, dtype=np.float64)

# Convert to [0..1]
input_image_normalized = data / 255.0

# Convert to grayscale via simple weighting
input_image_normalized = (
    input_image_normalized[:, :, 0] * 0.2989 +  # Red channel
    input_image_normalized[:, :, 1] * 0.5870 +  # Green channel
    input_image_normalized[:, :, 2] * 0.1140    # Blue channel
)

zoom_factors_2d = (0.25, 0.25)
border_fraction = 0.3  # still available as a fallback (unused when roi=... is set)

# Face-centered 64×64 ROI (focus region for metrics & diffs)
ROI_SIZE_PX = 64
FACE_ROW, FACE_COL = 400, 600  # (row, col) approx center of the detail

h_img, w_img = input_image_normalized.shape

# Top-left of the 64×64 box, clipped to stay inside the image
row_top = int(np.clip(FACE_ROW - ROI_SIZE_PX // 2, 0, h_img - ROI_SIZE_PX))
col_left = int(np.clip(FACE_COL - ROI_SIZE_PX // 2, 0, w_img - ROI_SIZE_PX))

# ROI rectangle for metrics/plots (row, col, height, width)
roi_rect = (row_top, col_left, ROI_SIZE_PX, ROI_SIZE_PX)

roi_kwargs = dict(
    roi_height_frac=ROI_SIZE_PX / h_img,  # keeps height at 64 px (square ROI)
    grayscale=True,
    roi_xy=(row_top, col_left),           # top-left of the ROI
)

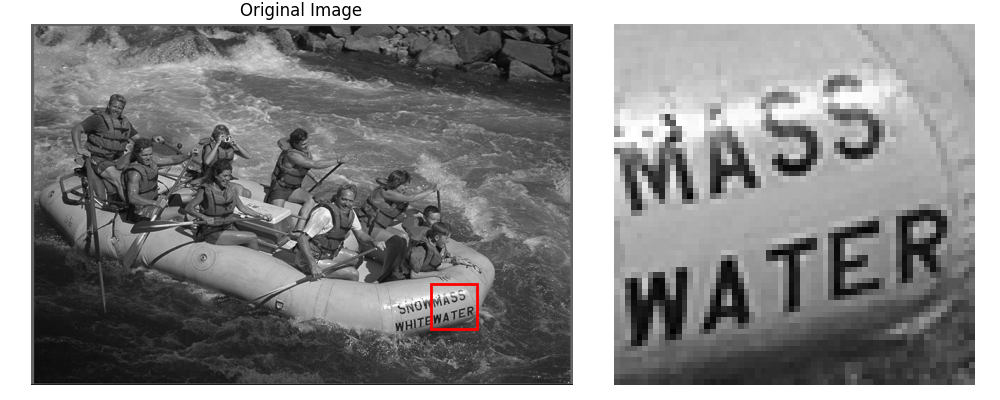

# Original (shifted ROI)
_ = show_roi_zoom(
    input_image_normalized,
    ax_titles=("Original Image", None),
    **roi_kwargs
)

Standard Interpolation

We use our standard interpolation method (cubic). SNR/MSE are computed on the ROI.

(
    resized_2d_interp,
    recovered_2d_interp,
    snr_2d_interp,
    mse_2d_interp,
    time_2d_interp
) = resize_and_compute_metrics(
    input_image_normalized,
    method="cubic",
    zoom_factors=zoom_factors_2d,
    border_fraction=border_fraction,  # kept for API parity; ROI takes precedence in metrics
    roi=roi_rect                      # <-- metrics measured on the face ROI
)

Resized Image

Show the resized image pasted on a white canvas (for zoom-out), plus the ROI zoom.

# Zoomed face detail for the resized (cubic) image — pasted onto original-size canvas ===
h_res, w_res = resized_2d_interp.shape
zoom_r, zoom_c = zoom_factors_2d

# ROI size in the resized image (e.g., 64 -> 16 px when zoom=0.25)
roi_h_res = max(1, int(round(ROI_SIZE_PX * zoom_r)))
roi_w_res = max(1, int(round(ROI_SIZE_PX * zoom_c)))

# ROI center mapped into the resized image
center_r_res = int(round(FACE_ROW * zoom_r))
center_c_res = int(round(FACE_COL * zoom_c))

# Top-left of the ROI in the resized image, clipped to bounds
row_top_res = int(np.clip(center_r_res - roi_h_res // 2, 0, h_res - roi_h_res))
col_left_res = int(np.clip(center_c_res - roi_w_res // 2, 0, w_res - roi_w_res))

# --- Build original-size white canvas and paste the small resized image at top-left (0,0) ---
canvas = np.ones((h_img, w_img), dtype=resized_2d_interp.dtype)  # white background in [0,1]
canvas[:h_res, :w_res] = resized_2d_interp

roi_kwargs_on_canvas = dict(
    roi_height_frac=roi_h_res / h_img,   # keeps the inset square at roi_h_res pixels high
    grayscale=True,
    roi_xy=(row_top_res, col_left_res),  # same coords since pasted at (0,0)
)

_ = show_roi_zoom(
    canvas,
    ax_titles=("Resized Image (standard)", None),
    **roi_kwargs_on_canvas
)

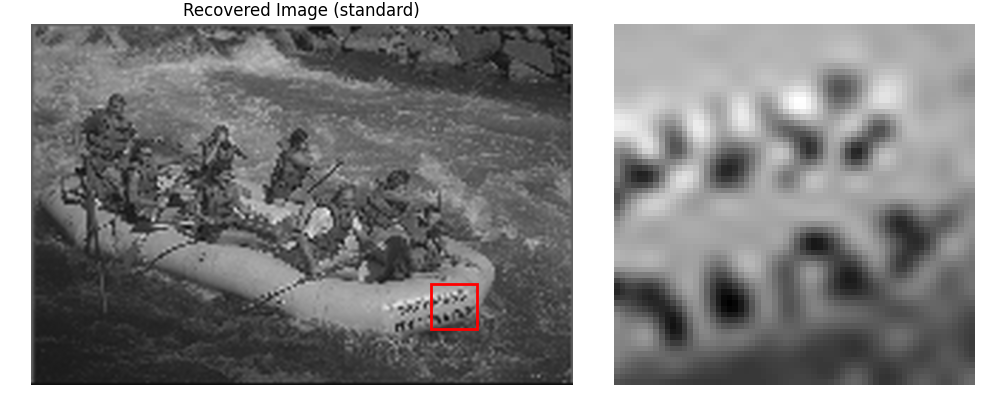

Recovered Image (standard)

We plot the recovered image (after reversing the zoom) with the same ROI.

_ = show_roi_zoom(
    recovered_2d_interp,
    ax_titles=("Recovered Image (standard)", None),
    **roi_kwargs
)

SciPy Interpolation

For comparison, we also use SciPy’s zoom method. Metrics are computed on the ROI.

(
    resized_2d_scipy,
    recovered_2d_scipy,
    snr_2d_scipy,
    mse_2d_scipy,
    time_2d_scipy
) = resize_and_compute_metrics(
    input_image_normalized,
    method="scipy",
    scipy_order=3,
    zoom_factors=zoom_factors_2d,
    border_fraction=border_fraction,  # kept for parity
    roi=roi_rect                      # <-- metrics measured on the face ROI
)

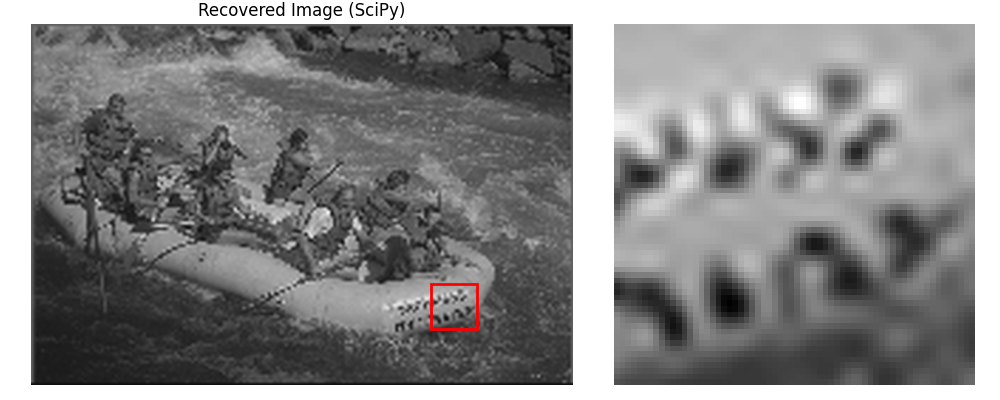

Recovered Image (SciPy)

_ = show_roi_zoom(
    recovered_2d_scipy,
    ax_titles=("Recovered Image (SciPy)", None),
    **roi_kwargs
)

Difference Images

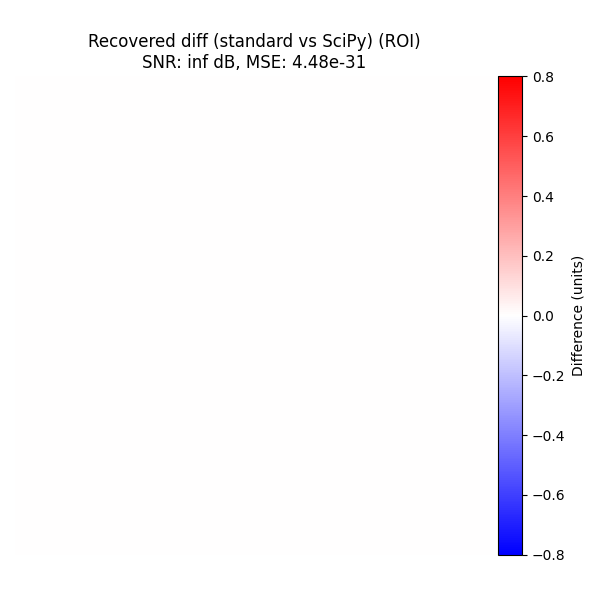

Standard vs SciPy

Compare the two recovered images on the face ROI and plot that difference.

snr_scipy_vs_interp, mse_scipy_vs_interp = compute_snr_and_mse_region(
    recovered_2d_scipy, recovered_2d_interp, roi=roi_rect
)

plot_difference_image(
    original=recovered_2d_scipy,
    recovered=recovered_2d_interp,
    snr=snr_scipy_vs_interp,
    mse=mse_scipy_vs_interp,
    roi=roi_rect,
    title_prefix="Recovered diff (standard vs SciPy)"
)

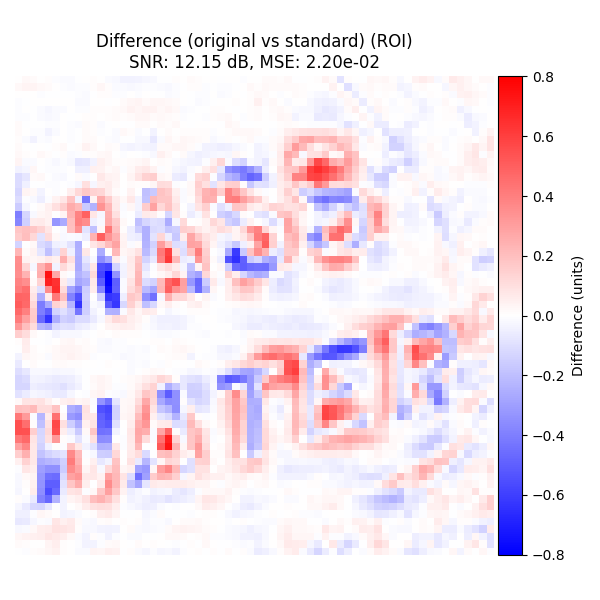

Original vs Standard

For completeness, show the difference image (original - recovered with standard interpolation) on the ROI.

plot_difference_image(
    original=input_image_normalized,
    recovered=recovered_2d_interp,
    snr=snr_2d_interp,
    mse=mse_2d_interp,
    roi=roi_rect,
    title_prefix="Difference (original vs standard)"
)

Alternative using TensorSpline

As an alternative, we can replicate the same interpolation manually using the TensorSpline class, which underpins the resize() function behind the scenes.

from splineops.interpolate.tensorspline import TensorSpline

# 1) Build uniform coordinate arrays that match the shape of 'input_image_normalized'
height, width = input_image_normalized.shape
x_coords = np.linspace(0, height - 1, height)
y_coords = np.linspace(0, width - 1, width)
coordinates_2d = (x_coords, y_coords)

# 2) For "cubic interpolation", pick "bspline3".
#    For boundary handling, we can pick "mirror", "zero", etc.
ts = TensorSpline(
    data=input_image_normalized,
    coordinates=coordinates_2d,
    bases="bspline3",  # cubic B-splines
    modes="mirror"     # handles boundaries with mirroring
)

# 3) Define new coordinate grids for the "zoomed" shape.
zoomed_height = int(height * zoom_factors_2d[0])
zoomed_width  = int(width  * zoom_factors_2d[1])

x_coords_zoomed = np.linspace(0, height - 1, zoomed_height)
y_coords_zoomed = np.linspace(0, width  - 1, zoomed_width)
coords_zoomed_2d = (x_coords_zoomed, y_coords_zoomed)

# Evaluate (forward pass): zoom in or out
resized_direct_ts = ts(coordinates=coords_zoomed_2d)

# 4) Define coordinate grids for returning to the original shape
x_coords_orig = np.linspace(0, height - 1, height)
y_coords_orig = np.linspace(0, width  - 1, width)
coords_orig_2d = (x_coords_orig, y_coords_orig)

# Evaluate (backward pass): from zoomed shape back to original
ts_zoomed = TensorSpline(
    data=resized_direct_ts,
    coordinates=coords_zoomed_2d,
    bases="bspline3",
    modes="mirror"
)
recovered_direct_ts = ts_zoomed(coordinates=coords_orig_2d)

# Now, resized_direct_ts / recovered_direct_ts should be very similar
# to 'resized_2d_interp' / 'recovered_2d_interp' from the high-level "resize()" approach.
# Let's compute MSE to confirm:
mse_forward  = np.mean((resized_direct_ts  - resized_2d_interp ) ** 2)
mse_backward = np.mean((recovered_direct_ts - recovered_2d_interp) ** 2)
print(f"MSE (TensorSpline vs. resize()) resized:  {mse_forward:.6e}")
print(f"MSE (TensorSpline vs. resize()) recovered: {mse_backward:.6e}")

MSE (TensorSpline vs. resize()) resized:  0.000000e+00
MSE (TensorSpline vs. resize()) recovered: 3.525702e-30
