Wavelet Decomposition

This example demonstrates how to use the Decompose module for Haar wavelet decomposition (analysis & synthesis) in 2D.

Imports

import numpy as np
import matplotlib.pyplot as plt

# For downloading and handling the image
import requests
from io import BytesIO
from PIL import Image

# Wavelet classes for 2D
from splineops.decompose.wavelets.haar import HaarWavelets
from splineops.decompose.wavelets.splinewavelets import (
    Spline1Wavelets,
    Spline3Wavelets,
    Spline5Wavelets
)

Load and Normalize a 2D Image

Here, we load an example image from an online repository. We convert it to grayscale in [0,1].

url = 'https://r0k.us/graphics/kodak/kodak/kodim07.png'
response = requests.get(url)
img = Image.open(BytesIO(response.content))

# Convert to numpy float64
image_color = np.array(img, dtype=np.float64)

# Normalize to [0,1]
image_color /= 255.0

# Convert to grayscale using standard weights
image_gray = (
    image_color[:, :, 0] * 0.2989 +
    image_color[:, :, 1] * 0.5870 +
    image_color[:, :, 2] * 0.1140
)

ny, nx = image_gray.shape
print(f"Downloaded image shape = {ny} x {nx}")

def imshow_matched_LL(
    coeffs,
    levels,
    orig_image,          # full-resolution grayscale image
    detail_pct=95,       # percentile for LH/HL/HH stretch
    ll_low=2, ll_high=98,# LL stretch percentiles
    ax=None,
    title=None,
    cmap='gray',
):
    """
    Visualise a wavelet pyramid so that

       • the smallest LL block has roughly the same contrast and overall
         brightness as the original image; and
       • every detail coefficient is stretched, then mapped to 0.5 ± 0.5 so
         zero is mid-gray.

    Parameters
    ----------
    coeffs : 2-D np.ndarray
        Wavelet-coefficient array in quadrant-pyramid layout.
    levels : int
        Decomposition depth (to locate the LL block).
    orig_image : 2-D np.ndarray
        Original full-resolution grayscale image in [0, 1].
    detail_pct : float
        |coeff| percentile that maps to ±1 in the detail bands.
    ll_low, ll_high : float
        Percentiles (0–100) used for LL contrast stretch.
    """
    if ax is None:
        ax = plt.gca()

    vis      = np.empty_like(coeffs, dtype=np.float64)
    ny, nx   = vis.shape
    ny_ll    = ny // (2 ** levels)
    nx_ll    = nx // (2 ** levels)

    # ─────────────────── 1.  LL block ───────────────────
    ll            = coeffs[:ny_ll, :nx_ll]
    lo, hi        = np.percentile(ll, [ll_low, ll_high])
    hi            = max(hi, lo + 1e-12)                 # avoid zero division
    ll_lin        = np.clip((ll - lo) / (hi - lo), 0, 1)

    # ▸ match mean brightness to original image
    mean_orig     = float(np.mean(orig_image))
    mean_ll       = float(np.mean(ll_lin))
    if mean_ll < 1e-12:         # degenerate (all black): avoid log(0)
        gamma = 1.0
    else:
        gamma = np.log(mean_orig + 1e-12) / np.log(mean_ll + 1e-12)
    ll_matched    = ll_lin ** gamma
    vis[:ny_ll, :nx_ll] = ll_matched

    # ─────────────────── 2.  Detail bands ───────────────
    detail_mask   = np.ones_like(coeffs, dtype=bool)
    detail_mask[:ny_ll, :nx_ll] = False
    if detail_mask.any():
        dvals   = coeffs[detail_mask]
        d_scale = np.percentile(np.abs(dvals), detail_pct)
        d_scale = max(d_scale, 1e-12)
        d_norm  = np.clip(dvals / d_scale, -1, 1) / 2 + 0.5   # [-1,1]→[0,1]
        vis[detail_mask] = d_norm

    # ─────────────────── 3.  Display ────────────────────
    ax.imshow(vis, cmap=cmap, vmin=0, vmax=1, interpolation='nearest')
    ax.axis('off')
    if title:
        ax.set_title(title, fontsize=14)

Downloaded image shape = 512 x 768

2D Wavelet Decomposition

We demonstrate wavelet decomposition (analysis) and reconstruction (synthesis) using 2D Haar wavelets on a grayscale image.

haar2d = HaarWavelets(scales=3)
coeffs = haar2d.analysis(image_gray)
recon_haar = haar2d.synthesis(coeffs)
err_haar = recon_haar - image_gray
max_err_haar = np.abs(err_haar).max()

print("[Wavelets 2D Haar Test]")
print(f"Max error after 3-scale decomposition: {max_err_haar}")

# Helper function for visualization
def pyramid_with_quadrant_embedding_levels(wavelet, inp, num_levels):
    """
    Perform multi-scale wavelet analysis in-place so that at each level the
    new coarse approximation is stored in the quadrant corresponding to the
    previous level's coarse region.

    Parameters
    ----------
    wavelet : AbstractWavelets instance
        A wavelet instance (e.g., HaarWavelets) with the desired number of scales.
    inp : np.ndarray
        Input 2D array (e.g., grayscale image).
    num_levels : int
        The number of decomposition levels to perform.

    Returns
    -------
    coeffs : np.ndarray
        Final coefficient array (same size as inp) with the pyramid layout.
    """
    out = np.copy(inp)
    ny, nx = out.shape[:2]

    for level in range(num_levels):
        # Process the current top-left subarray
        sub = out[:ny, :nx]
        sub_out = wavelet.analysis1(sub)
        out[:ny, :nx] = sub_out

        # Update region size for next level (halve each dimension)
        nx = max(1, nx // 2)
        ny = max(1, ny // 2)

    return out

[Wavelets 2D Haar Test]
Max error after 3-scale decomposition: 1.3322676295501878e-15

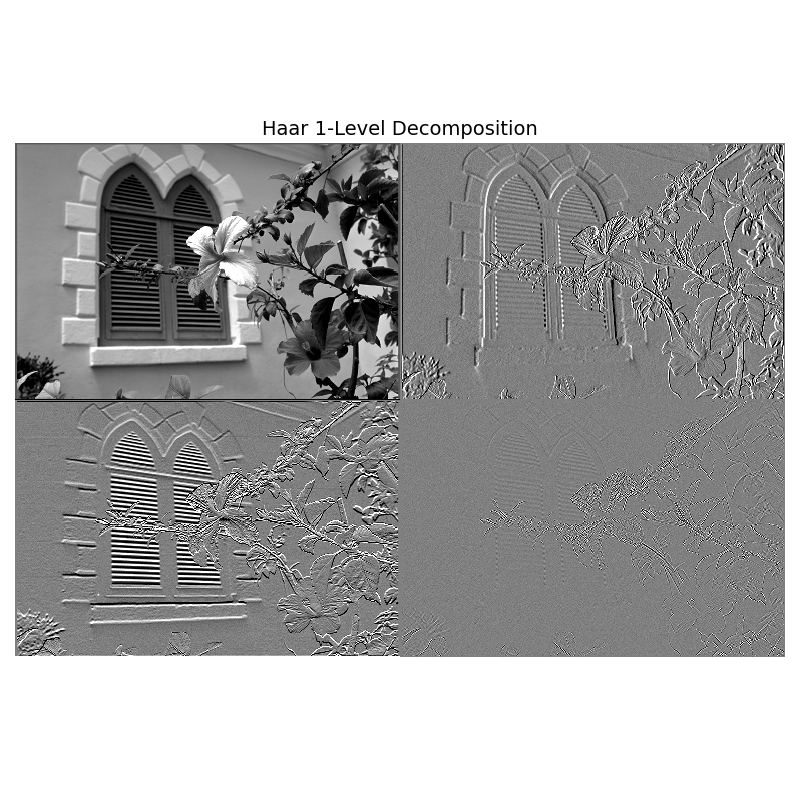

1-Level Decomposition

wavelet1 = HaarWavelets(scales=1)
coeffs1  = pyramid_with_quadrant_embedding_levels(wavelet1, image_gray, 1)

plt.figure(figsize=(8, 8))
imshow_matched_LL(coeffs1, levels=1, orig_image=image_gray,
                  detail_pct=95, ll_low=5, ll_high=99,
                  title="Haar 1-Level Decomposition")
plt.tight_layout()
plt.show()

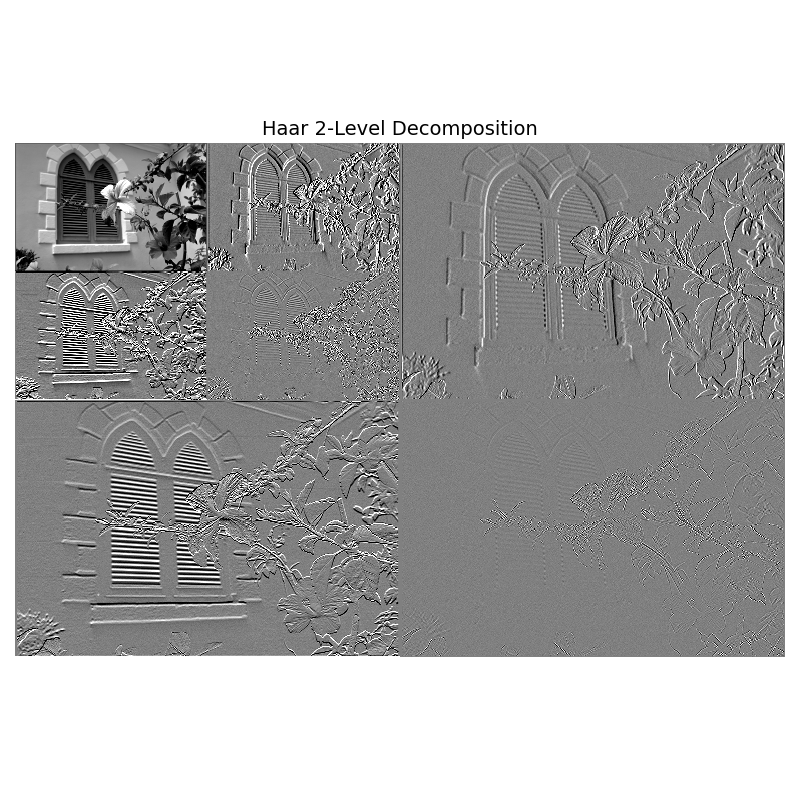

2-Level Decomposition

wavelet2 = HaarWavelets(scales=2)
coeffs2  = pyramid_with_quadrant_embedding_levels(wavelet2, image_gray, 2)

plt.figure(figsize=(8, 8))
imshow_matched_LL(coeffs2, levels=2, orig_image=image_gray,
                  detail_pct=95, ll_low=5, ll_high=99,
                  title="Haar 2-Level Decomposition")
plt.tight_layout()
plt.show()

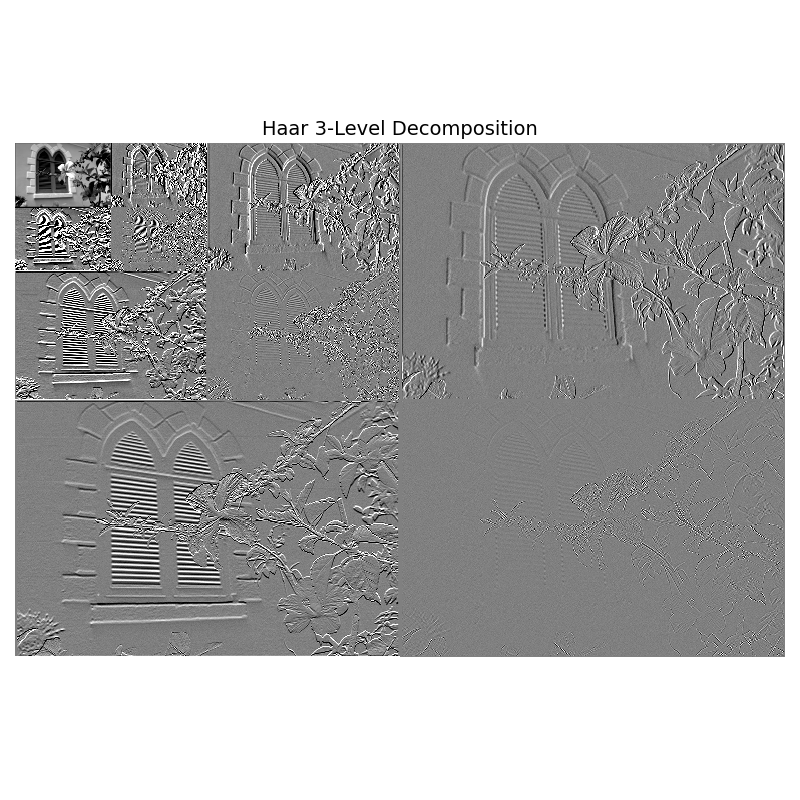

3-Level Decomposition

wavelet3 = HaarWavelets(scales=3)
coeffs3  = pyramid_with_quadrant_embedding_levels(wavelet3, image_gray, 3)

plt.figure(figsize=(8, 8))
imshow_matched_LL(coeffs3, levels=3, orig_image=image_gray,
                  detail_pct=95, ll_low=5, ll_high=99,
                  title="Haar 3-Level Decomposition")
plt.tight_layout()
plt.show()
