Oblique Projection

Interpolate 2D images with and oblique projection.

Imports

import numpy as np

import requests
from io import BytesIO
from PIL import Image
import matplotlib.pyplot as plt

from splineops.utils import (
    resize_and_compute_metrics,          # resampling + metrics
    plot_difference_image,
    show_roi_zoom,
    draw_leastsq_vs_oblique_pipeline,    # reused diagram helper (for layout consistency)
)

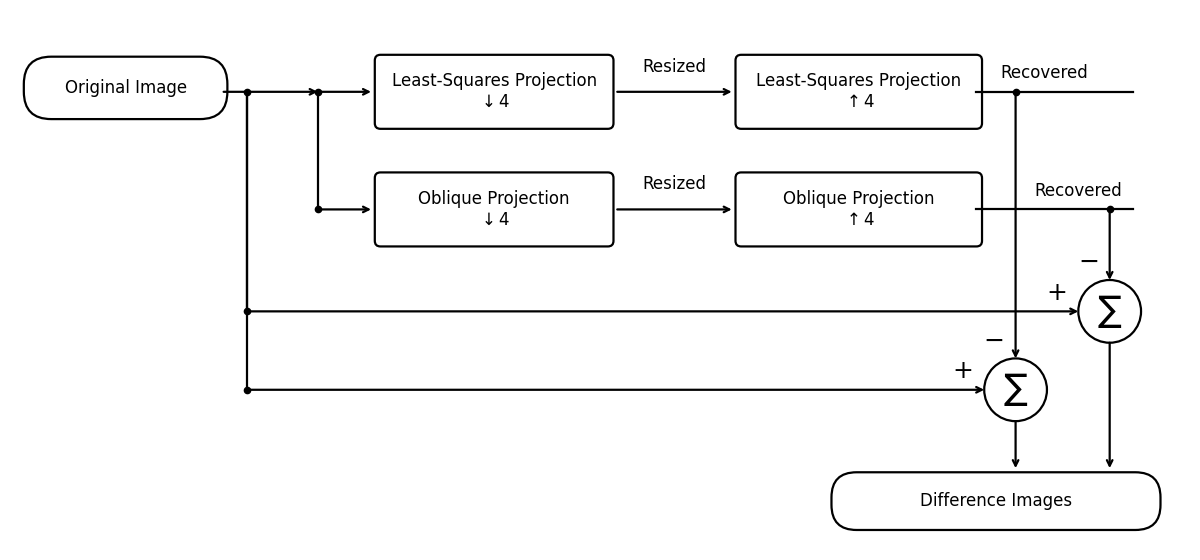

Pipeline Diagram

_ = draw_leastsq_vs_oblique_pipeline(
    include_upsample_labels=True,
    width=12.0
)

Highlights: ROI comparison

Load once, compute BOTH methods (keeping recovered + metrics) if missing, then show a 1×3 ROI triptych.

# --- Load (only if not already available) ---
if "input_image_normalized" not in locals():
    url = 'https://r0k.us/graphics/kodak/kodak/kodim14.png'
    response = requests.get(url, timeout=10)
    img = Image.open(BytesIO(response.content))
    data = np.array(img, dtype=np.float64)
    input_image_normalized = data / 255.0
    input_image_normalized = (
        input_image_normalized[:, :, 0] * 0.2989 +
        input_image_normalized[:, :, 1] * 0.5870 +
        input_image_normalized[:, :, 2] * 0.1140
    )

# Reuse / set shared constants
zoom_factors_2d = locals().get("zoom_factors_2d", (0.25, 0.25))
border_fraction = locals().get("border_fraction", 0.3)
ROI_SIZE_PX = locals().get("ROI_SIZE_PX", 64)

# ROI
FACE_ROW    = locals().get("FACE_ROW", 400)
FACE_COL    = locals().get("FACE_COL", 600)

# --- Compute both pipelines ONCE and keep recovered+metrics (reused later) ---
if not all(v in locals() for v in ("resized_2d_ls","recovered_2d_ls","snr_2d_ls","mse_2d_ls","time_2d_ls")):
    (resized_2d_ls, recovered_2d_ls, snr_2d_ls, mse_2d_ls, time_2d_ls) = resize_and_compute_metrics(
        input_image_normalized, method="cubic-best_antialiasing",
        zoom_factors=zoom_factors_2d, border_fraction=border_fraction
    )
if not all(v in locals() for v in ("resized_2d_ob","recovered_2d_ob","snr_2d_ob","mse_2d_ob","time_2d_ob")):
    (resized_2d_ob, recovered_2d_ob, snr_2d_ob, mse_2d_ob, time_2d_ob) = resize_and_compute_metrics(
        input_image_normalized, method="cubic-fast_antialiasing",
        zoom_factors=zoom_factors_2d, border_fraction=border_fraction
    )

# --- Build a quick ROI triptych (nearest-neighbour magnification) ---
def _nearest_big(roi: np.ndarray, target_h: int) -> np.ndarray:
    h, w = roi.shape
    mag = max(1, int(round(target_h / h)))
    return np.repeat(np.repeat(roi, mag, axis=0), mag, axis=1)

# Same ROI coords for all three since recovered images are original-sized
h_img, w_img = input_image_normalized.shape
row0 = int(np.clip(FACE_ROW - ROI_SIZE_PX // 2, 0, h_img - ROI_SIZE_PX))
col0 = int(np.clip(FACE_COL - ROI_SIZE_PX // 2, 0, w_img - ROI_SIZE_PX))

roi_orig = input_image_normalized[row0:row0+ROI_SIZE_PX, col0:col0+ROI_SIZE_PX]
roi_ls   = recovered_2d_ls[  row0:row0+ROI_SIZE_PX, col0:col0+ROI_SIZE_PX]
roi_ob   = recovered_2d_ob[  row0:row0+ROI_SIZE_PX, col0:col0+ROI_SIZE_PX]

DISPLAY_H = 256
roi_big_orig = _nearest_big(roi_orig, DISPLAY_H)
roi_big_ls   = _nearest_big(roi_ls,   DISPLAY_H)
roi_big_ob   = _nearest_big(roi_ob,   DISPLAY_H)

fig, axes = plt.subplots(1, 3, figsize=(12.5, 4.6))
for ax, im, title in zip(
    axes,
    [roi_big_orig, roi_big_ls, roi_big_ob],

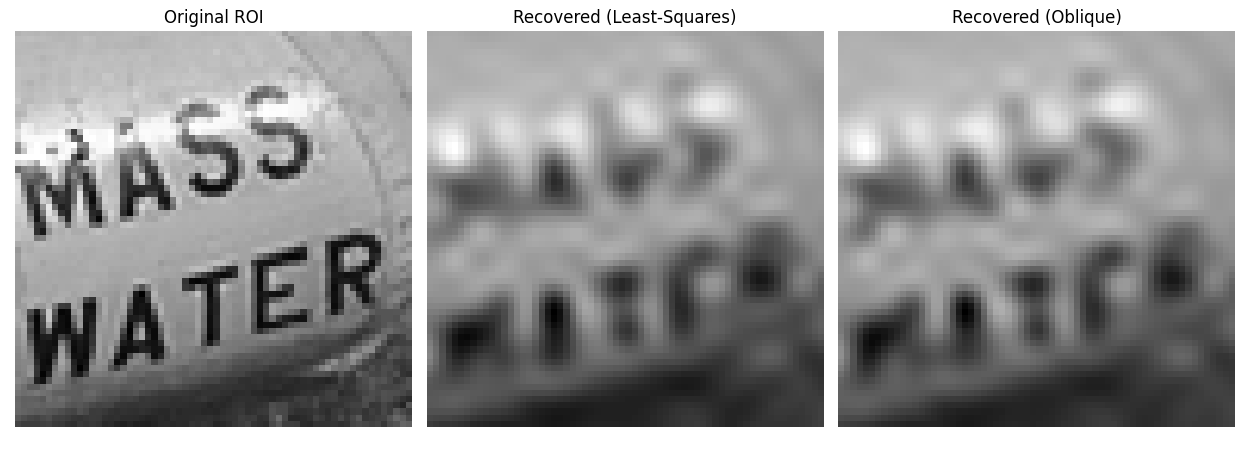

    ["Original ROI", "Recovered (Least-Squares)", "Recovered (Oblique)"]
):
    ax.imshow(im, cmap="gray", interpolation="nearest")
    ax.set_title(title); ax.axis("off"); ax.set_aspect("equal")
fig.tight_layout()
plt.show()

Load and Normalize an Image

if "input_image_normalized" not in locals():
    url = 'https://r0k.us/graphics/kodak/kodak/kodim14.png'
    response = requests.get(url, timeout=10)
    img = Image.open(BytesIO(response.content))
    data = np.array(img, dtype=np.float64)

    # Convert to [0..1] + grayscale
    input_image_normalized = data / 255.0
    input_image_normalized = (
        input_image_normalized[:, :, 0] * 0.2989,  # Red
    ) + (
        input_image_normalized[:, :, 1] * 0.5870   # Green
    ) + (
        input_image_normalized[:, :, 2] * 0.1140   # Blue
    )

# Reuse constants if present; otherwise set them here.
zoom_factors_2d = locals().get("zoom_factors_2d", (0.25, 0.25))
border_fraction = locals().get("border_fraction", 0.3)

# ROI
ROI_SIZE_PX = locals().get("ROI_SIZE_PX", 64)
FACE_ROW    = locals().get("FACE_ROW", 250)
FACE_COL    = locals().get("FACE_COL", 445)

h_img, w_img = input_image_normalized.shape

# Top-left of the 64×64 box, clipped to stay inside the image
row_top = int(np.clip(FACE_ROW - ROI_SIZE_PX // 2, 0, h_img - ROI_SIZE_PX))
col_left = int(np.clip(FACE_COL - ROI_SIZE_PX // 2, 0, w_img - ROI_SIZE_PX))
roi_rect = (row_top, col_left, ROI_SIZE_PX, ROI_SIZE_PX)  # (r, c, h, w)

roi_kwargs = dict(
    roi_height_frac=ROI_SIZE_PX / h_img,  # keeps height at 64 px (square ROI)
    grayscale=True,
    roi_xy=(row_top, col_left),           # top-left of the ROI
)

# Shared mapping for resized-space ROI (used by both resized displays)
zoom_r, zoom_c = zoom_factors_2d
center_r_res = int(round(FACE_ROW * zoom_r))
center_c_res = int(round(FACE_COL * zoom_c))
roi_h_res = max(1, int(round(ROI_SIZE_PX * zoom_r)))
roi_w_res = max(1, int(round(ROI_SIZE_PX * zoom_c)))

# Original (shifted ROI)
_ = show_roi_zoom(
    input_image_normalized,

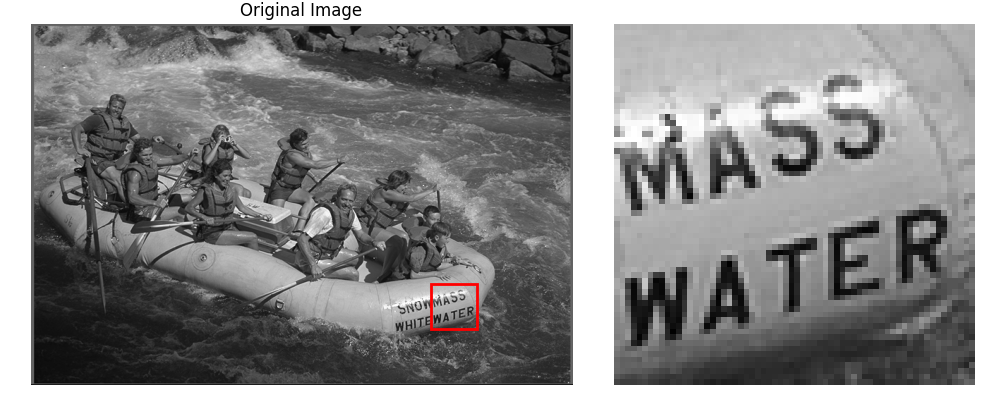

    ax_titles=("Original Image", None),
    **roi_kwargs
)

Resized Images

Least-Squares Projection

need_ls = not all(
    v in locals()
    for v in ("resized_2d_ls", "recovered_2d_ls", "snr_2d_ls", "mse_2d_ls", "time_2d_ls")
)
if need_ls:
    (resized_2d_ls, recovered_2d_ls, snr_2d_ls, mse_2d_ls, time_2d_ls) = resize_and_compute_metrics(
        input_image_normalized,
        method="cubic-best_antialiasing",
        zoom_factors=zoom_factors_2d,
        border_fraction=border_fraction,
        roi=roi_rect
    )

h_res_ls, w_res_ls = resized_2d_ls.shape

row_top_res_ls = int(np.clip(center_r_res - roi_h_res // 2, 0, h_res_ls - roi_h_res))
col_left_res_ls = int(np.clip(center_c_res - roi_w_res // 2, 0, w_res_ls - roi_w_res))

# Build original-size white canvas and paste the small resized LS image at top-left (0,0)
canvas_ls = np.ones((h_img, w_img), dtype=resized_2d_ls.dtype)  # white background in [0,1]
canvas_ls[:h_res_ls, :w_res_ls] = resized_2d_ls

roi_kwargs_on_canvas_ls = dict(
    roi_height_frac=roi_h_res / h_img,     # << was roi_h_res
    grayscale=True,
    roi_xy=(row_top_res_ls, col_left_res_ls),
)

_ = show_roi_zoom(
    canvas_ls,

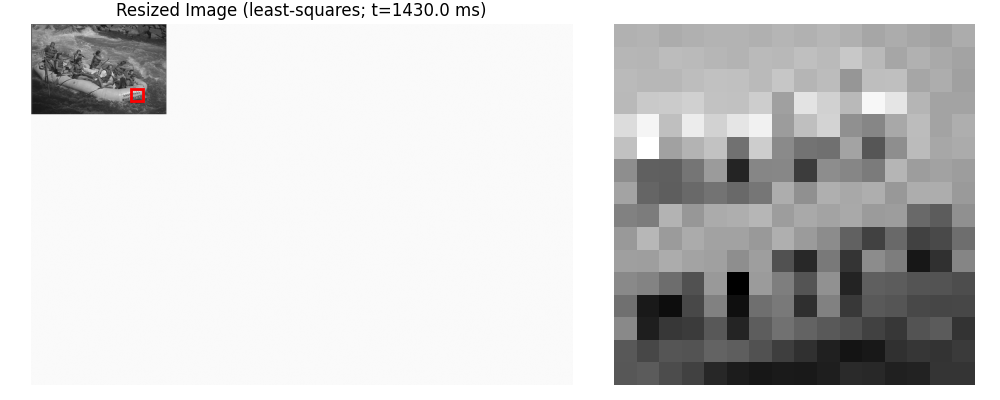

    ax_titles=(f"Resized Image (least-squares; t={time_2d_ls*1000:.1f} ms)", None),
    **roi_kwargs_on_canvas_ls
)

Oblique Projection

need_ob = not all(
    v in locals()
    for v in ("resized_2d_ob", "recovered_2d_ob", "snr_2d_ob", "mse_2d_ob", "time_2d_ob")
)
if need_ob:
    (resized_2d_ob, recovered_2d_ob, snr_2d_ob, mse_2d_ob, time_2d_ob) = resize_and_compute_metrics(
        input_image_normalized,
        method="cubic-fast_antialiasing",
        zoom_factors=zoom_factors_2d,
        border_fraction=border_fraction,
        roi=roi_rect
    )

h_res_ob, w_res_ob = resized_2d_ob.shape

row_top_res_ob = int(np.clip(center_r_res - roi_h_res // 2, 0, h_res_ob - roi_h_res))
col_left_res_ob = int(np.clip(center_c_res - roi_w_res // 2, 0, w_res_ob - roi_w_res))

canvas_ob = np.ones((h_img, w_img), dtype=resized_2d_ob.dtype)
canvas_ob[:h_res_ob, :w_res_ob] = resized_2d_ob

roi_kwargs_on_canvas_ob = dict(
    roi_height_frac=roi_h_res / h_img,
    grayscale=True,
    roi_xy=(row_top_res_ob, col_left_res_ob),
)

_ = show_roi_zoom(
    canvas_ob,

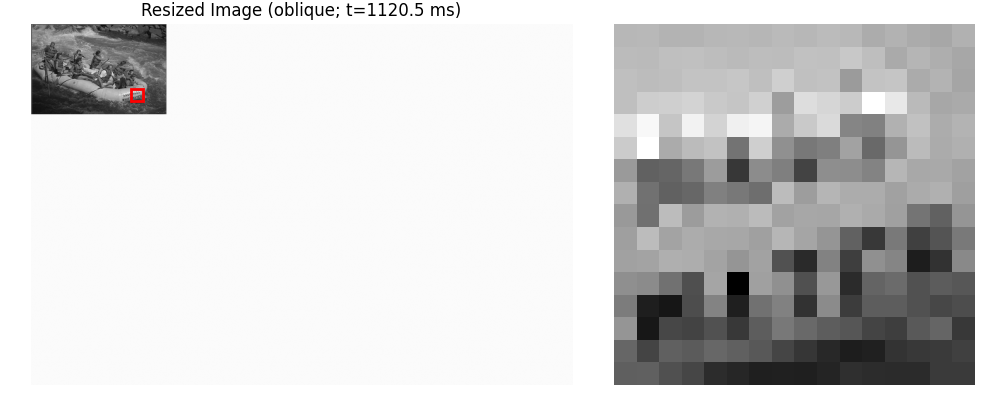

    ax_titles=(f"Resized Image (oblique; t={time_2d_ob*1000:.1f} ms)", None),
    **roi_kwargs_on_canvas_ob
)

Recovered Images

Least-Squares Projection

_ = show_roi_zoom(
    recovered_2d_ls,

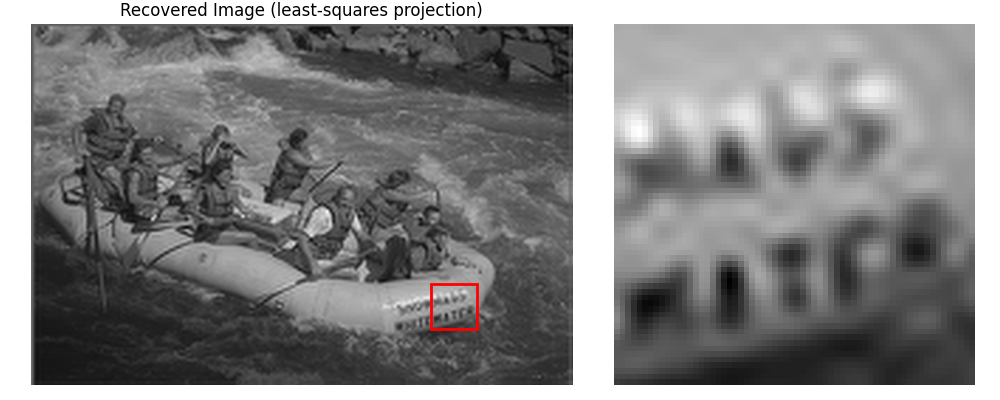

    ax_titles=("Recovered Image (least-squares projection)", None),
    **roi_kwargs
)

Oblique Projection

_ = show_roi_zoom(
    recovered_2d_ob,

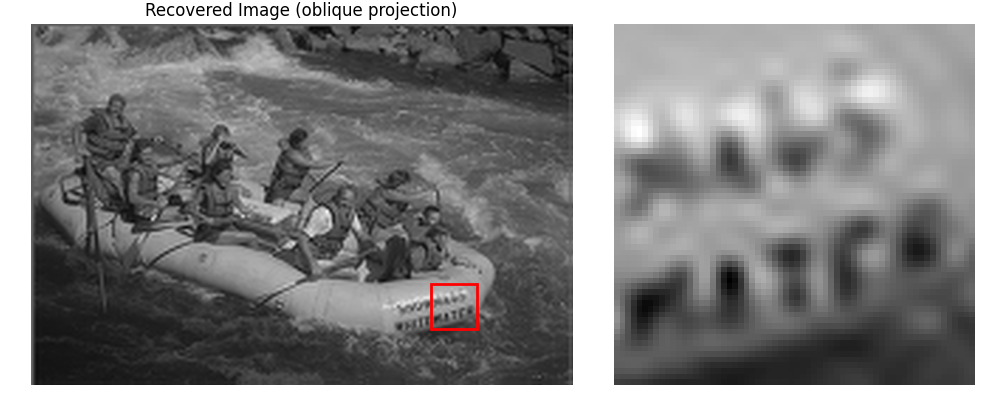

    ax_titles=("Recovered Image (oblique projection)", None),
    **roi_kwargs
)

Difference Images

Least-Squares Projection

Difference with original image on ROI.

plot_difference_image(
    original=input_image_normalized,
    recovered=recovered_2d_ls,
    snr=snr_2d_ls,
    mse=mse_2d_ls,
    roi=roi_rect,

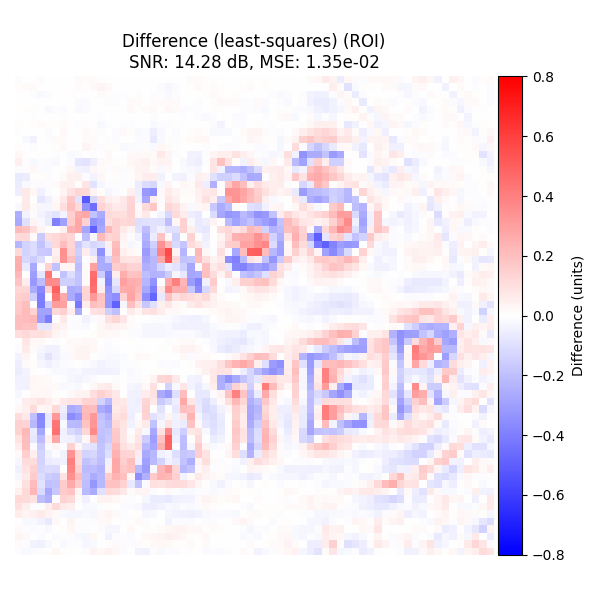

    title_prefix="Difference (least-squares)"
)

Oblique Projection

Difference with original image on ROI.

plot_difference_image(
    original=input_image_normalized,
    recovered=recovered_2d_ob,
    snr=snr_2d_ob,
    mse=mse_2d_ob,
    roi=roi_rect,

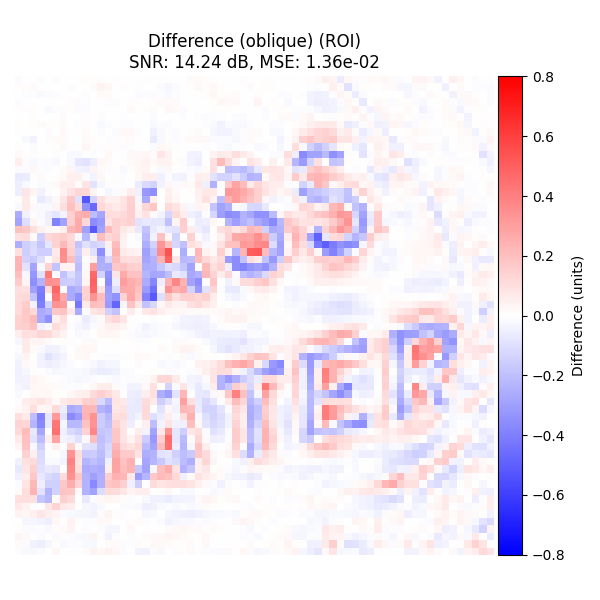

    title_prefix="Difference (oblique)"
)

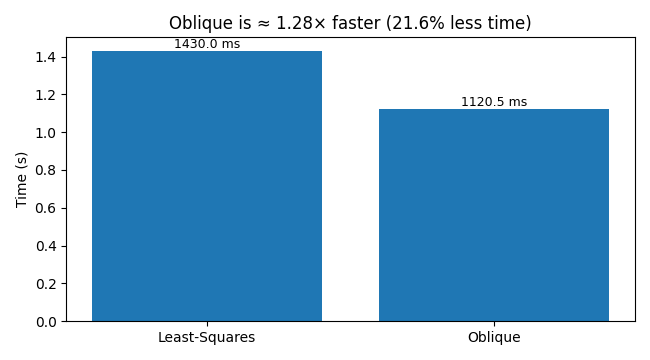

Performance: Time Comparison

speedup = (time_2d_ls / time_2d_ob) if time_2d_ob > 0 else np.inf
impr_pct = max(0.0, (1.0 - time_2d_ob / max(time_2d_ls, 1e-12)) * 100.0)

print(f"[Timing] Least-Squares: {time_2d_ls*1000:.1f} ms")
print(f"[Timing] Oblique      : {time_2d_ob*1000:.1f} ms")
print(f"[Timing] Speedup (LS/OB): {speedup:.2f}×  (~{impr_pct:.1f}% less time)")

fig, ax = plt.subplots(figsize=(6.5, 3.6))
methods = ["Least-Squares", "Oblique"]
times_s = [time_2d_ls, time_2d_ob]
bars = ax.bar(methods, times_s)
ax.set_ylabel("Time (s)")
ax.set_title(f"Oblique is ≈ {speedup:.2f}× faster ({impr_pct:.1f}% less time)")
for rect, t in zip(bars, times_s):
    h = rect.get_height()
    ax.text(rect.get_x() + rect.get_width()/2, h, f"{t*1000:.1f} ms",
            ha="center", va="bottom", fontsize=9)
fig.tight_layout()
plt.show()

[Timing] Least-Squares: 1430.0 ms
[Timing] Oblique      : 1120.5 ms
[Timing] Speedup (LS/OB): 1.28×  (~21.6% less time)
